51 32 154 Adjusting left or right front door window

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see GENERAL ELECTRICAL SYSTEM - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

61 2 071
61 2 210
61 3 060

NOTE: Door window glass must be closed.

Necessary Preliminary Tasks:

Remove sound insulation in front door. Refer to 51 48 060 REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN LEFT OR RIGHT FRONT DOOR .

Slacken screws (1 and 2) (do not release fully). Retaining clip (3) remains fitted.

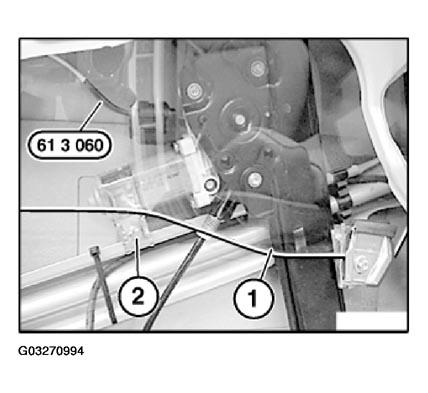

Fig 1: Locating Window Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Screws (1) of power window rails at top must be tightened down.

Connect special tool 61 3 060 to plug connection (3) and special tool 61 2 071.

Wind special tool 61 2 071 around cable (4) (risk of damage).

IMPORTANT: Energize power window unit for max. 0.5 seconds in end position (risk of damage).

Energize special tool 61 2 071 with 12V, the door window opens or closes through polarity reversal.

Open door window by approx. 100 mm.

Slacken screws (2) of door window (do not release fully).

Close door window completely.

Tighten down screws (2) of door window.

Tightening torque, refer to 51 32 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 545I (4.4L) E60 .

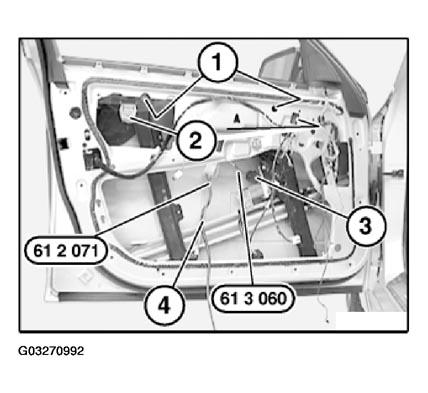

Fig 2: Identifying Power Window Rail Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Door window (1) opens or closed through polarity reversal of terminals (3).

Using special tools 61 2 210 and 61 2 071, open door window (1) to approx. 40 mm.

Tighten down screws (2).

Tightening torque, refer to 51 33 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 545I (4.4L) E60 .

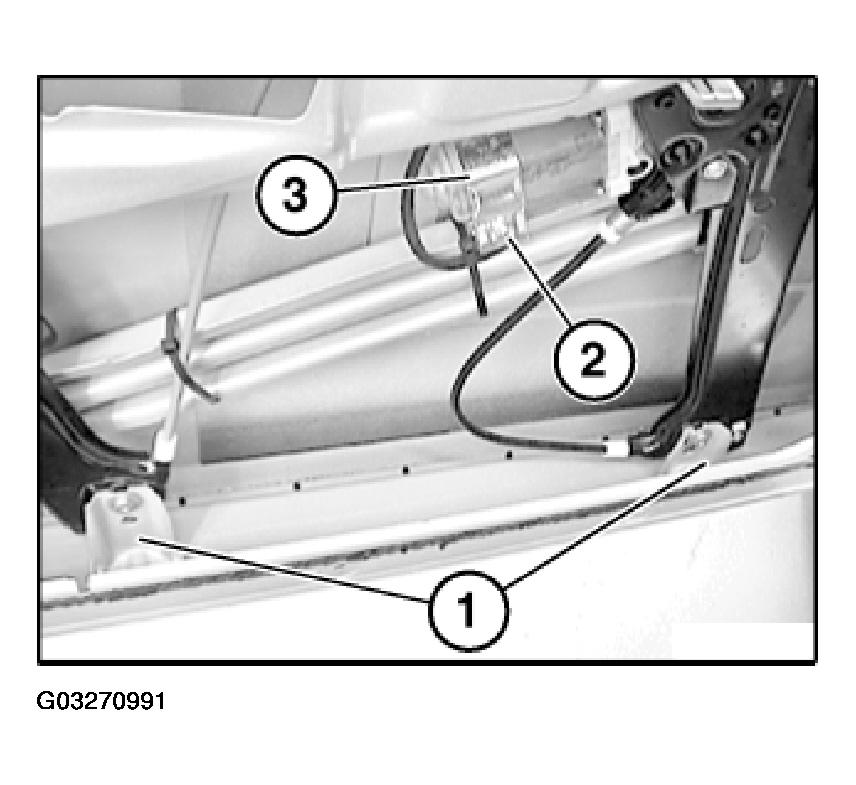

Fig 3: Locating Power Window Terminals

Courtesy of BMW OF NORTH AMERICA, INC.

Close door window (1) until screw (2) is accessible.

Tighten screw (2).

Tightening torque, refer to 51 33 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 545I (4.4L) E60 .

Close door window (1) completely.

Installation:

Initialize power window. Refer to 67 62 ... NOTES ON INITIALIZING POWER WINDOW .

Fig 4: View Of Door Window
