51 11 701 Replacing left or right bracket for front bumper
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove front bumper trim. Refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .

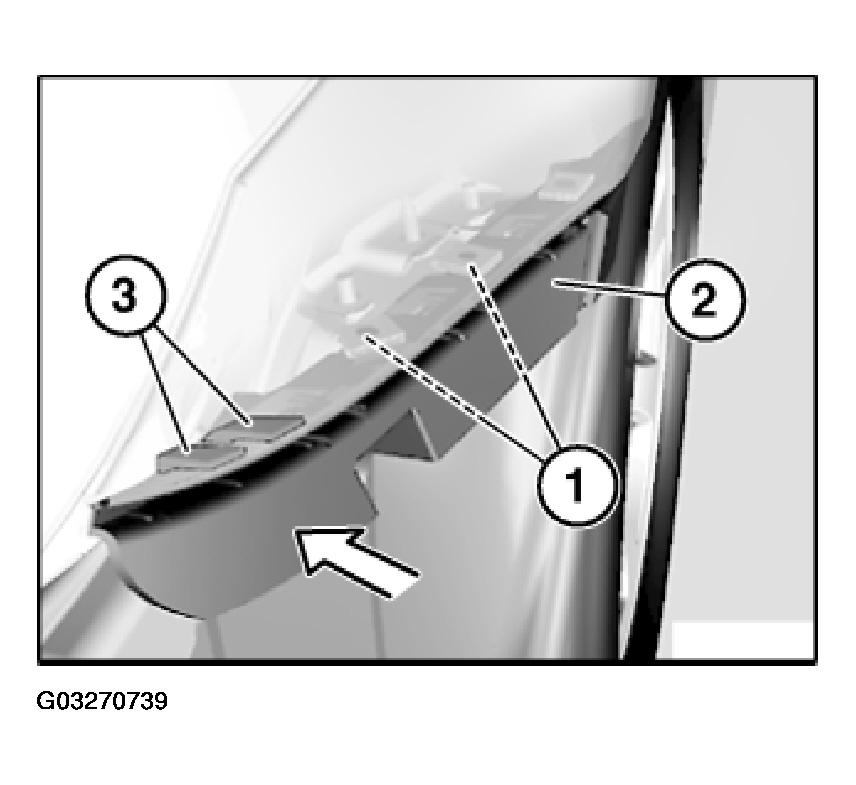

Release screws (1).
Remove bracket (2) in direction of arrow, catch (3) must not be damaged in the process.
Installation:
Bracket for bumper must not be damaged.
