34 35 001 Replacing a brake lining sensor
WARNING: This page is about a different car, the 2007 BMW 550i, 2006 BMW 550i, 2005 BMW 545i, and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove wheel. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .
IMPORTANT:
If a brake lining sensor that has already been ground has to be replaced even though the minimum brake lining thickness has not yet been reached, you must observe the following: The new sliding contact must be filed down with a file to the same length as the ground sliding contact. Refer to PEDALS - TIGHTENING TORQUES - E60

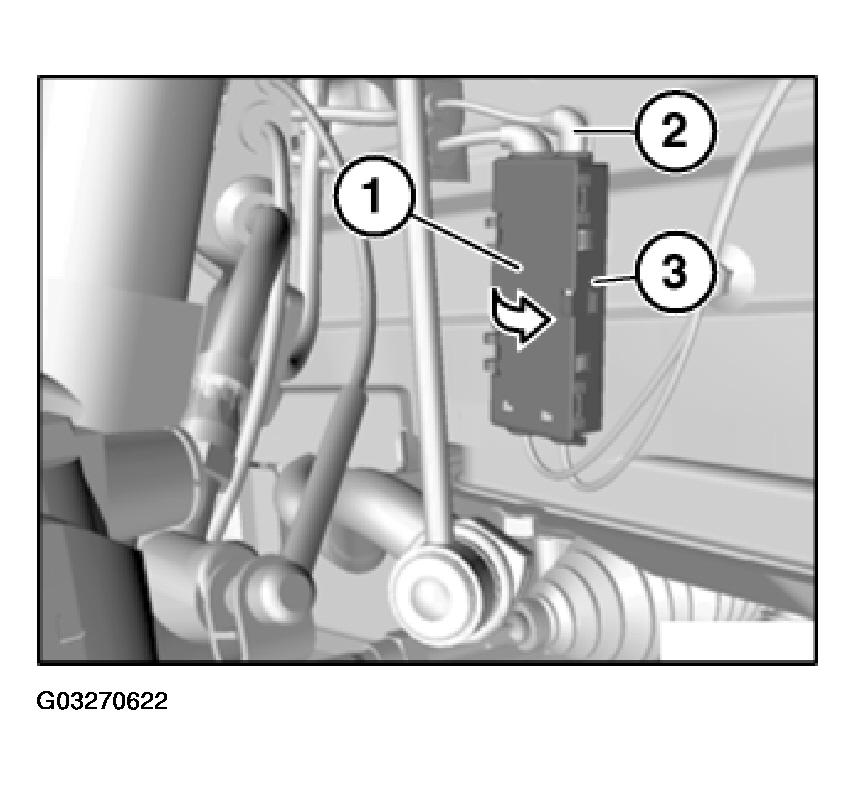

Open cover (1) on plug housing (3).
Unclip lead of brake lining sensor (2) from plug housing (3).
Disconnect associated plug connection of lead from brake lining sensor (2).
Feed lead from brake lining sensor (2) out of fixtures.

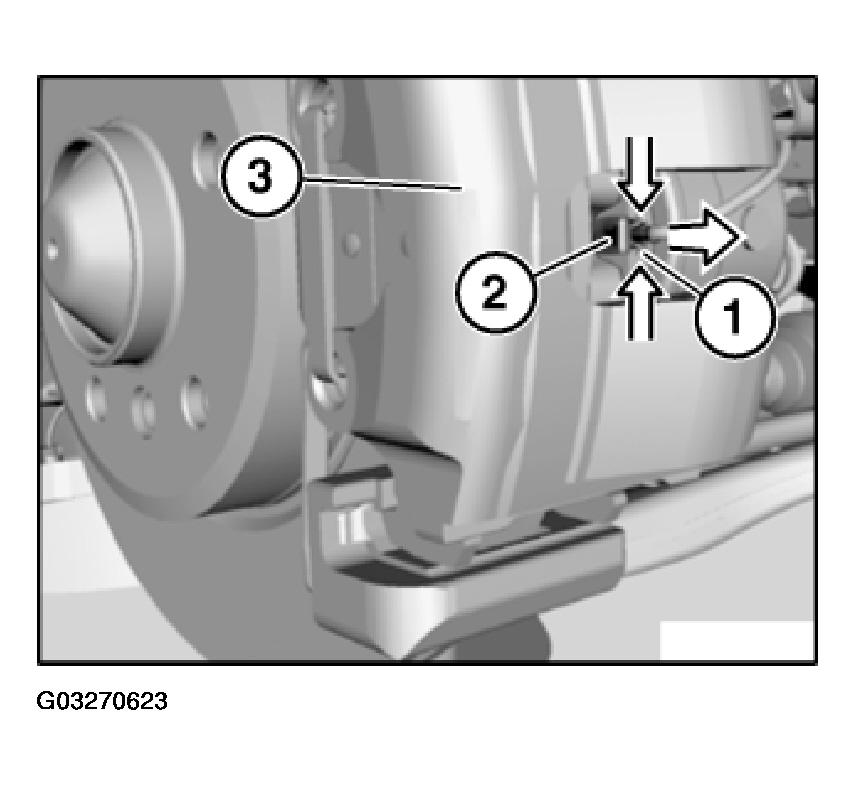

Press clip (1) together and detach brake lining sensor (2) in direction of arrow from brake caliper (3).
Installation:
Make sure clip (1) and brake lining sensor (2) are correctly seated in brake caliper (3).
