32 11 100 Replacing gaiter for steering gear on left or right

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The power steering gear must be replaced if the polished surface of the rack is damaged (e.g. by corrosion)!

Necessary Preliminary Tasks:

Remove tie rod end. Refer to 32 21 151 REPLACING LEFT OR RIGHT TIE ROD .
Remove underbody protective plate. Refer to 51 47 490 REMOVING AND INSTALLING / REPLACING FRONT UNDERBODY PROTECTION and 51 47 491 REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION .
If necessary, remove steering gear cover at side.

Clean tie rod.

Release band clamp (1) and ear clip (3). Refer to 32 41... INSTRUCTIONS FOR REMOVING AND INSTALLING EAR CLIPS .

Detach gaiter (2) from tie rod.

Installation:

Clean rack and check surface for damage (e.g. by corrosion).

Grease rack (refer to OPERATING FLUIDS ).

Check tie rod end for damage, replace if necessary. Refer to 32 21 151 REPLACING LEFT OR RIGHT TIE ROD .

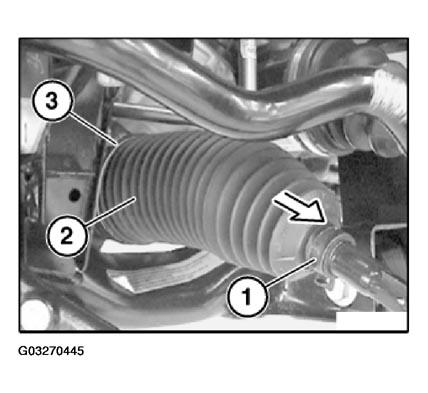

Fig 1: Identifying Band Clamp, Ear Clip And Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

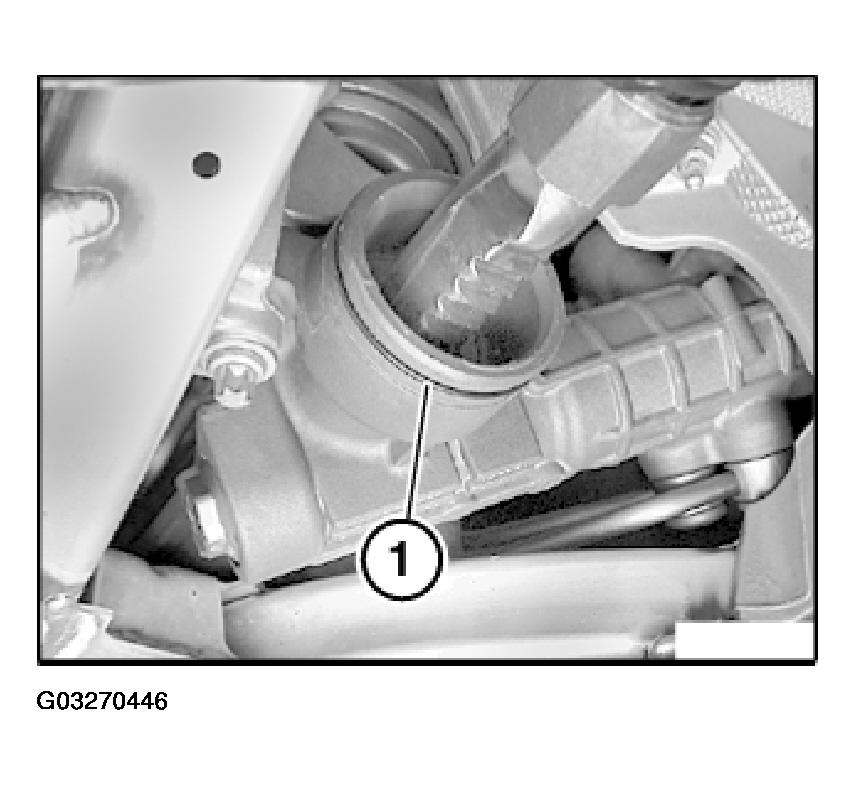

Replace and grease O-ring (1).

Fig 2: Locating O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Perform chassis alignment check. Refer to 32 00 150 STANDARD CHASSIS / WHEEL ALIGNMENT WITH DIN LOAD and 32 00 155 CHASSIS / WHEEL ALIGNMENT WITHOUT LOAD .
Carry out steering angle sensor adjustment/adjustment for active front steering. Refer to 32 10 005 ADJUSTMENT FOR ACTIVE FRONT STEERING and 61 31 996 CARRY OUT STEERING ANGLE SENSOR ADJUSTMENT .
