22 32 001 Replacing rubber mount for transmission mounting

Necessary Preliminary Tasks:

• Remove rear underbody protection.
• Remove complete exhaust system. Refer to 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (N62) .
• Remove exhaust system bracket (M47).
• Support transmission with lifter.

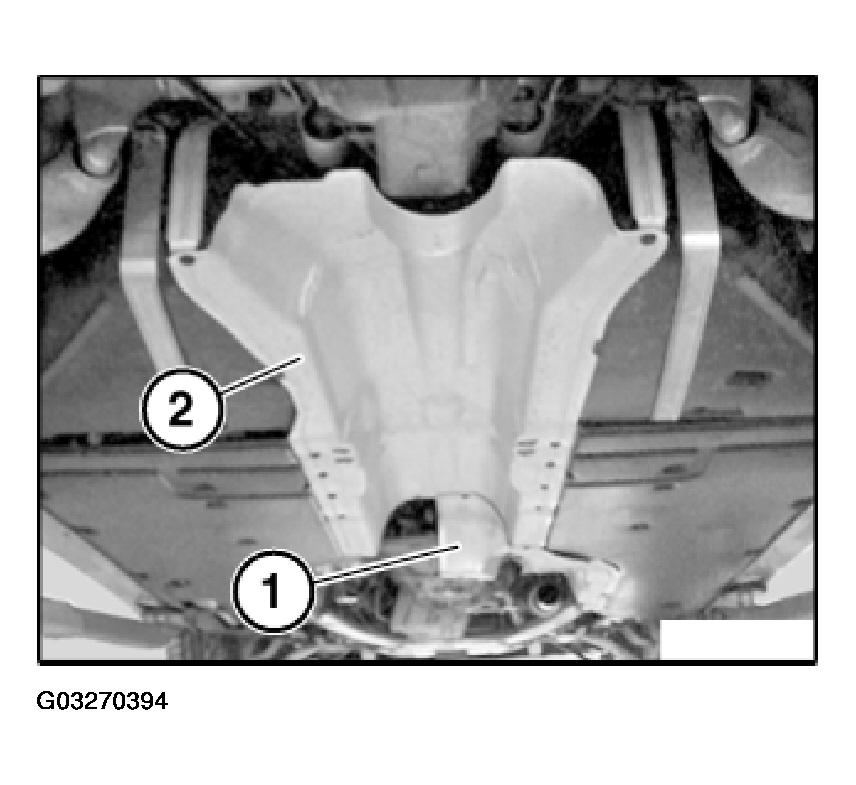

If necessary, remove heat shield (1) on left and right.

Fig 1: Identifying Heat Shields

Courtesy of BMW OF NORTH AMERICA, INC.

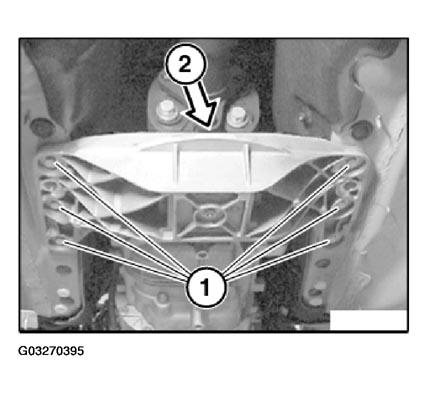

M57 only:

Release screws (1) and nut (2) and remove transmission crossmember. Remove rubber mount from transmission cross-member.

Tightening torque, refer to 22 32 3AZ/4AZ in ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES- 545i (4.4L) E60/N62 .

Fig 2: View Of Transmission Crossmember

Courtesy of BMW OF NORTH AMERICA, INC.

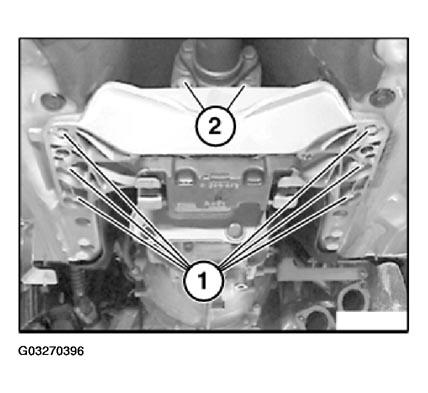

M54/N52/N62 only:

Release screws (1) and nut (2) and remove transmission crossmember.

Remove rubber mount from transmission cross-member. Tightening torque, refer to 22 32 3AZ/4AZ in ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES- 545i (4.4L) E60/N62 .

Fig 3: Locating Transmission Crossmember Retaining Nut

Courtesy of BMW OF NORTH AMERICA, INC.

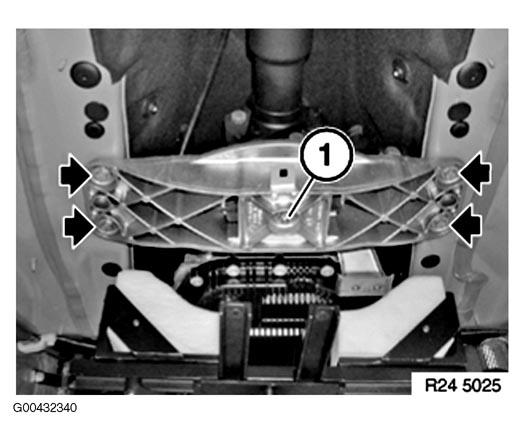

(M47)

Release screws and nut (1).

Remove cross member.

Tightening torque, refer to 22 32 3AZ/4AZ in ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES- 545i (4.4L) E60/N62 .

Fig 4: View Of Cross Member Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

(M47)

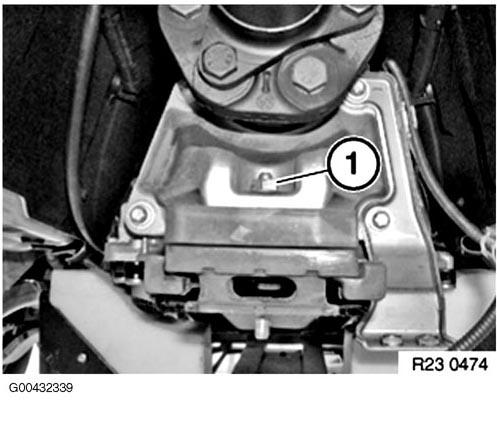

Slacken nut (1).

Exchange rubber mount.

Tightening torque, refer to 22 32 3AZ in ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES- 545i (4.4L) E60/N62 .

Fig 5: Identifying Rubber Mount Retaining Nut

Courtesy of BMW OF NORTH AMERICA, INC.
