18 00 020 Removing and installing complete exhaust system (N62)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

WARNING: Scalding hazard! Only perform this work after engine has cooled down. Danger of injury! Removal of the exhaust system must be carried out with the assistance of a second person. Weight of exhaust system is approx. 40 kg.

Support exhaust system with special tool 31 2 220.

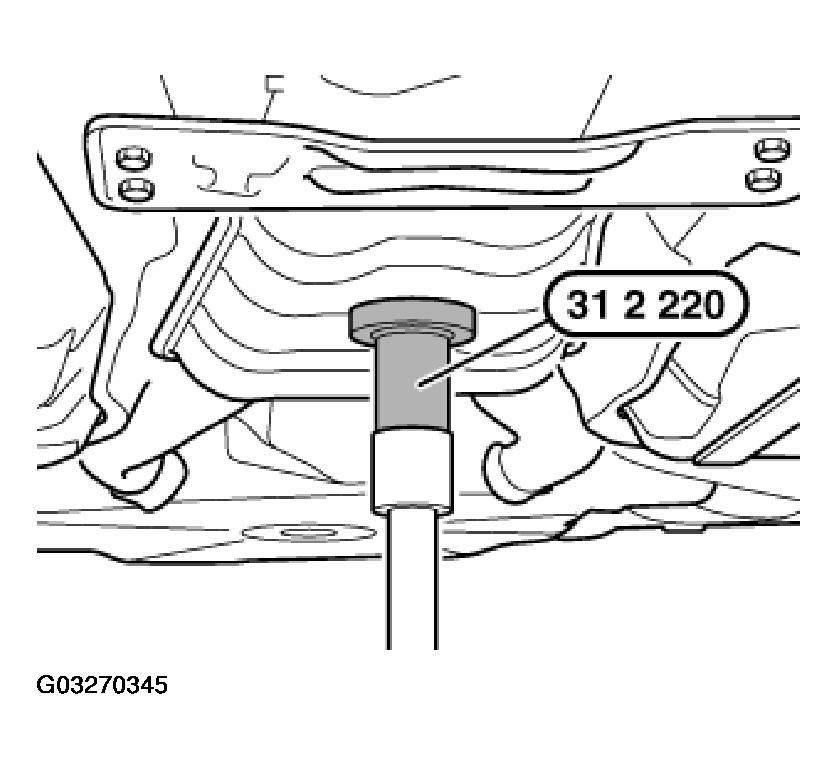

Fig 1: Supporting Exhaust System With Special Tool
G03270345Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Unscrew nuts (2).

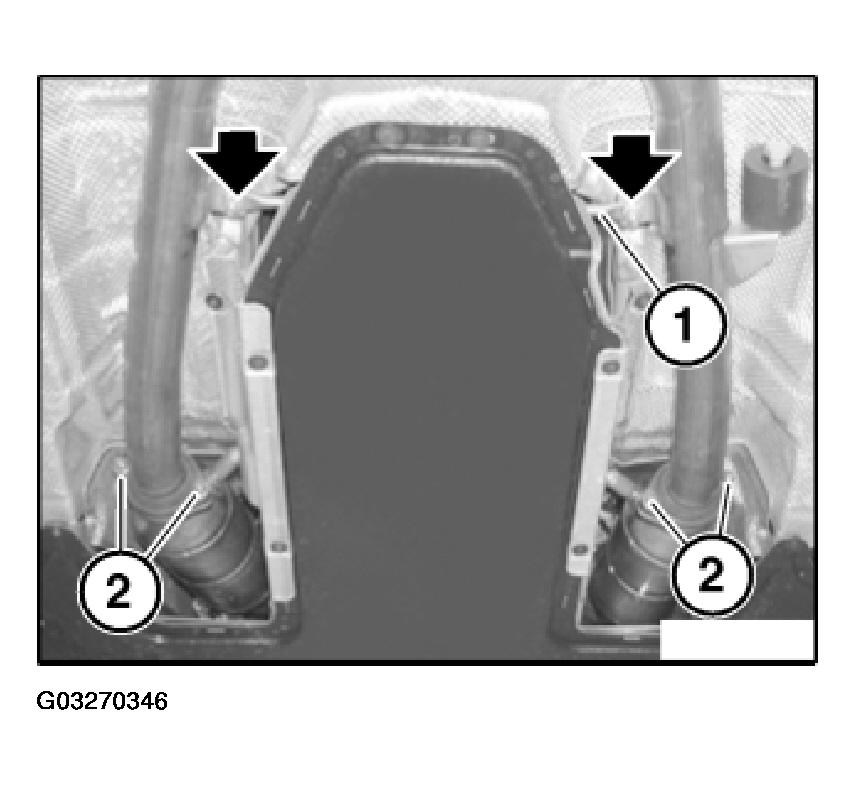

Fig 2: Locating Retaining Nuts For Exhaust System
G03270346Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nut (1).

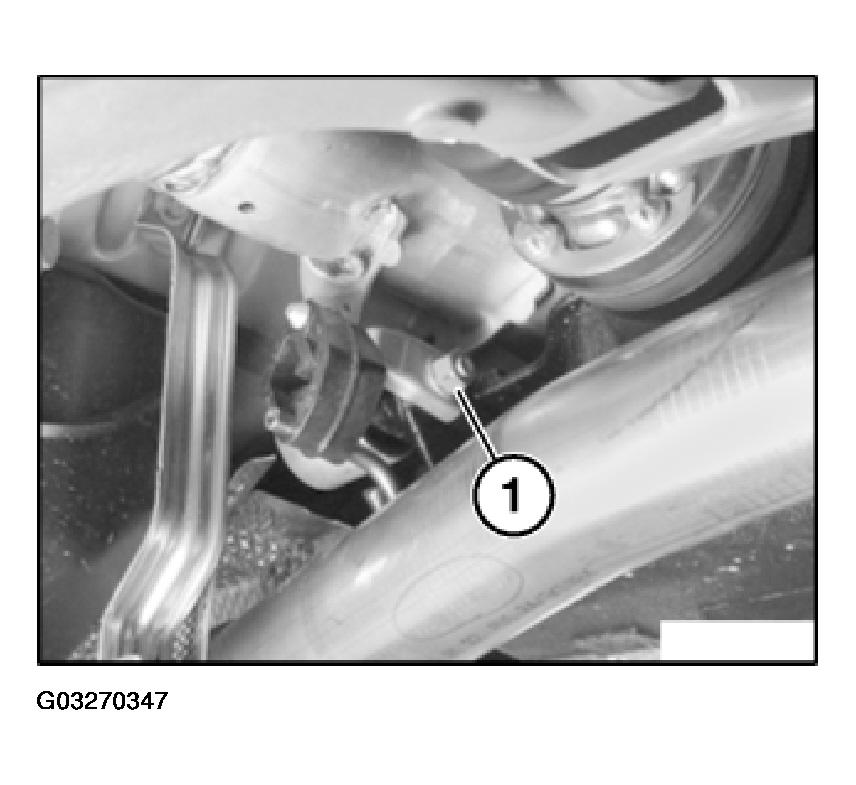

Fig 3: View Of Exhaust System Retaining Nuts
G03270347Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts.

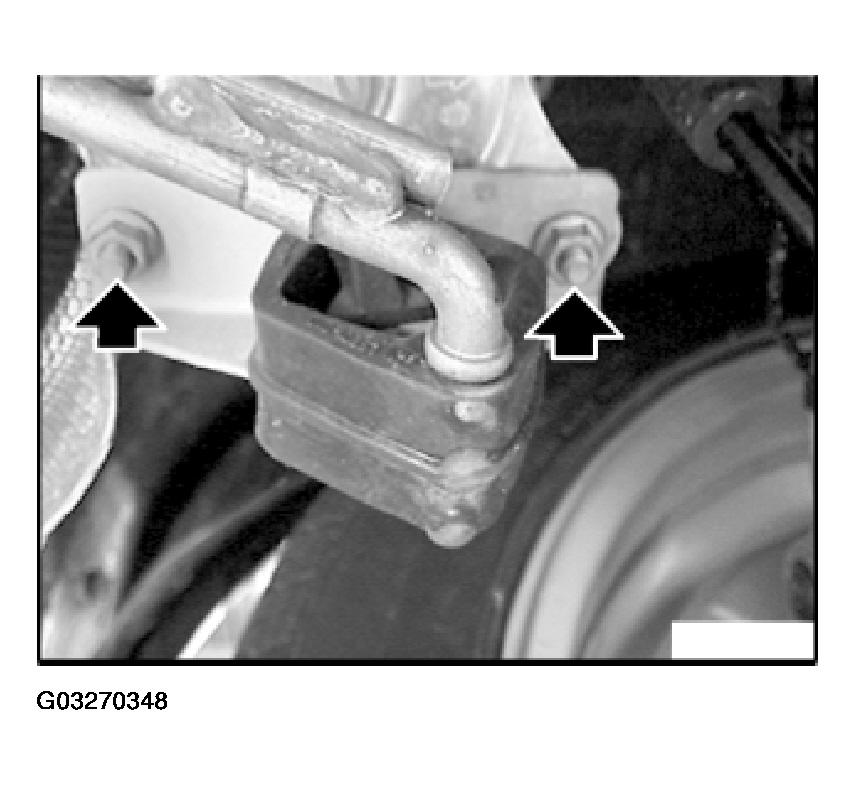

Fig 4: Identifying Retaining Nuts
G03270348Courtesy of BMW OF NORTH AMERICA, INC.

Detach hose (1) of vacuum unit. Unfasten nut.

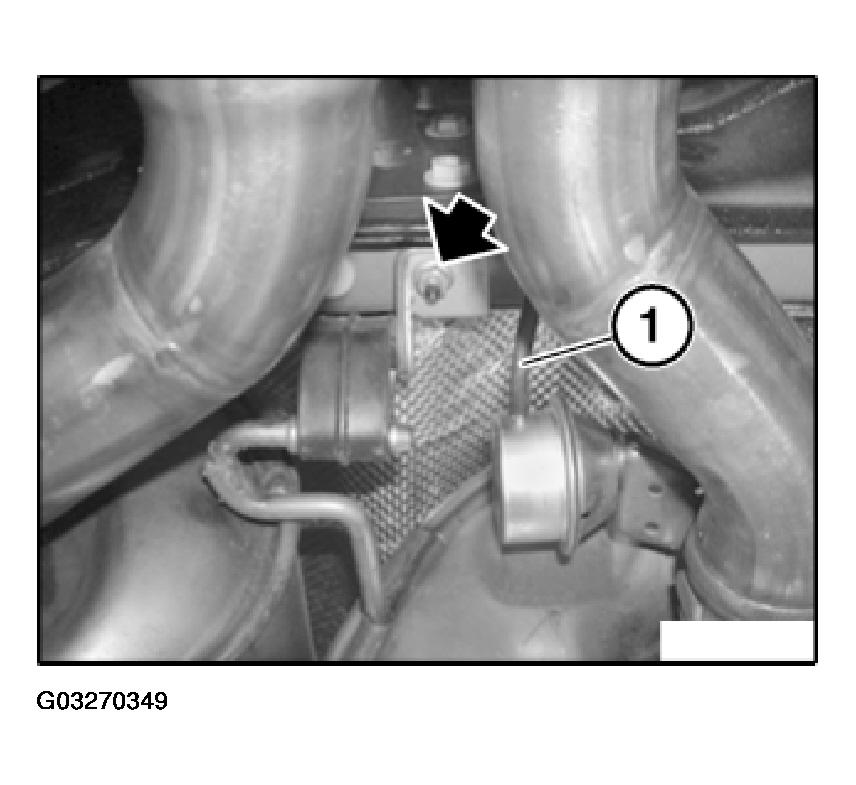

Fig 5: Locating Vacuum Unit Hose
G03270349Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Remove reinforcement plate (1).

Lower exhaust system carefully.

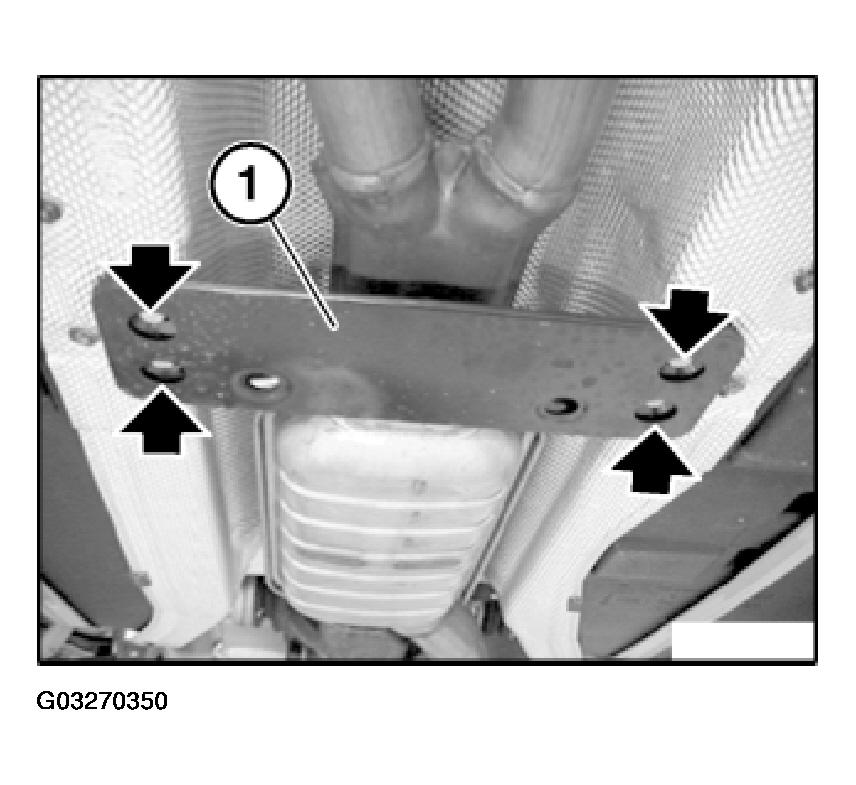

Fig 6: View Of Reinforcement Plate
G03270350Courtesy of BMW OF NORTH AMERICA, INC.
