22 11 100 Replacing right engine support arm (N62)
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Secure engine in installation position. Refer to SECURING ENGINE IN INSTALLATION POSITION WITH SPECIAL TOOL (N62) .
- Remove both front wheels. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .
- Remove underbody protection.
- Remove reinforcement plate.
- Lower front axle support. Refer to FRONT AXLE CARRIER .
Observe safety instructions on raising the vehicle. Refer to 00 .. ... LIFTING VEHICLE WITH A LIFTING PLATFORM .

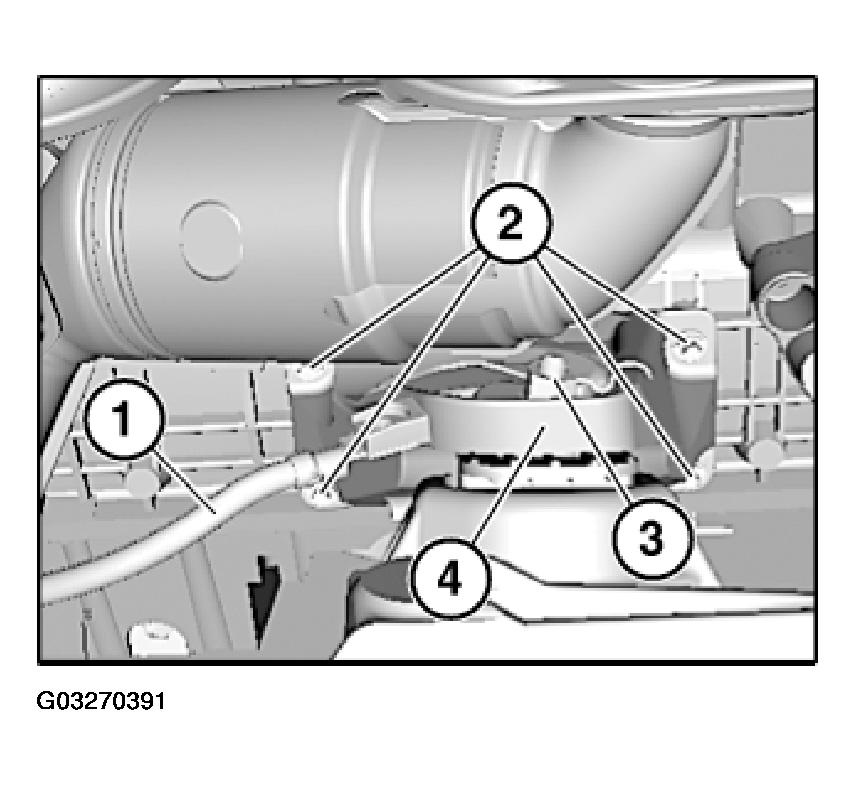

Release grounding strap (1) from engine support arm.
NOTE:
Clean contact surfaces to ensure a safe ground connection. Release screws (2) and nut (3) and remove engine support arm.
Tightening torque, refer to 22 11 2AZ/3AZ in ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES- 545i (4.4L) E60/N62 .
