22 11 001 Replacing right engine mount (N62)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Secure engine in installation position. Refer to SECURING ENGINE IN INSTALLATION POSITION WITH SPECIAL TOOL (N62) .
Remove underbody protection.
Remove both front wheels. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .
Remove reinforcement plate.
Lower front axle support. Refer to FRONT AXLE CARRIER .

Observe safety instructions on raising the vehicle. Refer to 00 .. ... LIFTING VEHICLE WITH A LIFTING PLATFORM .

Release nut (1) and screws (2).

Tightening torque, refer to 22 11 1AZ/2AZ in ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES- 545i (4.4L) E60/N62 .

Remove engine mount.

NOTE: Illustrations show M57.

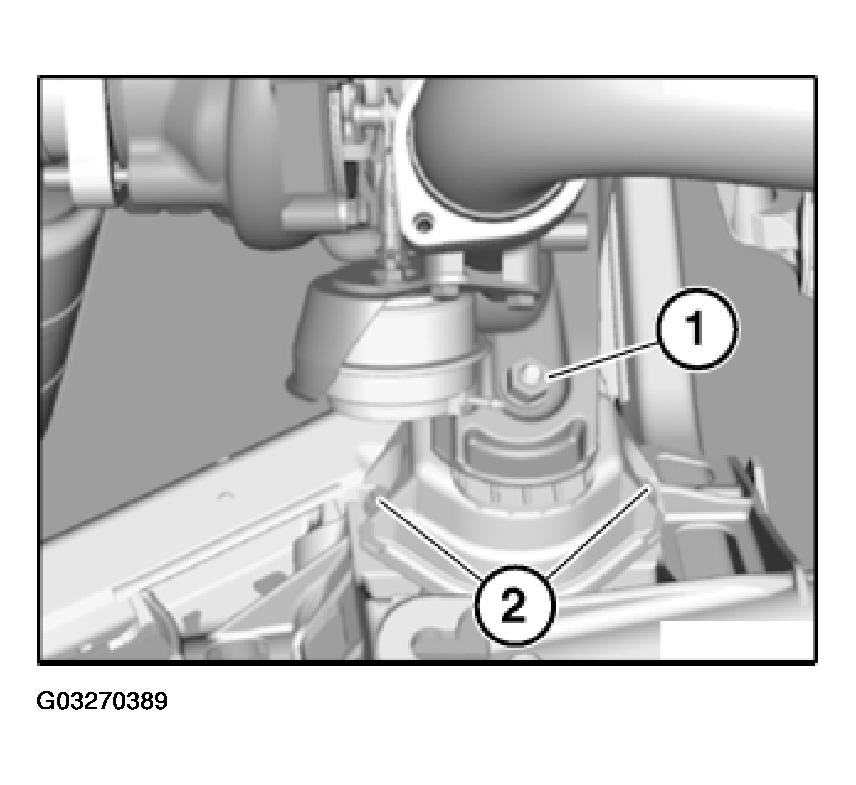

Fig 1: Identifying Right Engine Mount Nut And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Lug (1) of engine mount must point to middle of vehicle. Engine mount designations:

ENGINE MOUNT DESIGNATIONS

Right engine mount:	Even component number
Left engine mount:	Odd component number

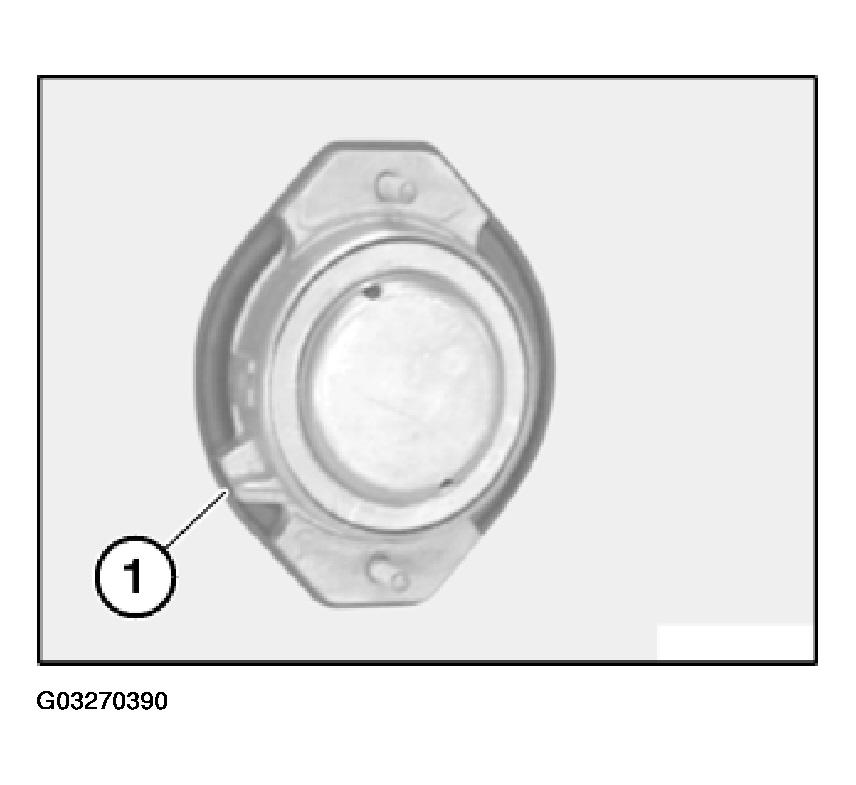

Fig 2: Identifying Lug Of Engine Mount

Courtesy of BMW OF NORTH AMERICA, INC.
