64 11 916 Replacing temperature sensor for cold-air distributor
WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, and 2008 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove audio system controller/Car Communication Computer. See 65 12 200 REMOVING AND INSTALLING (REPLACING) AUDIO SYSTEM CONTROLLER .

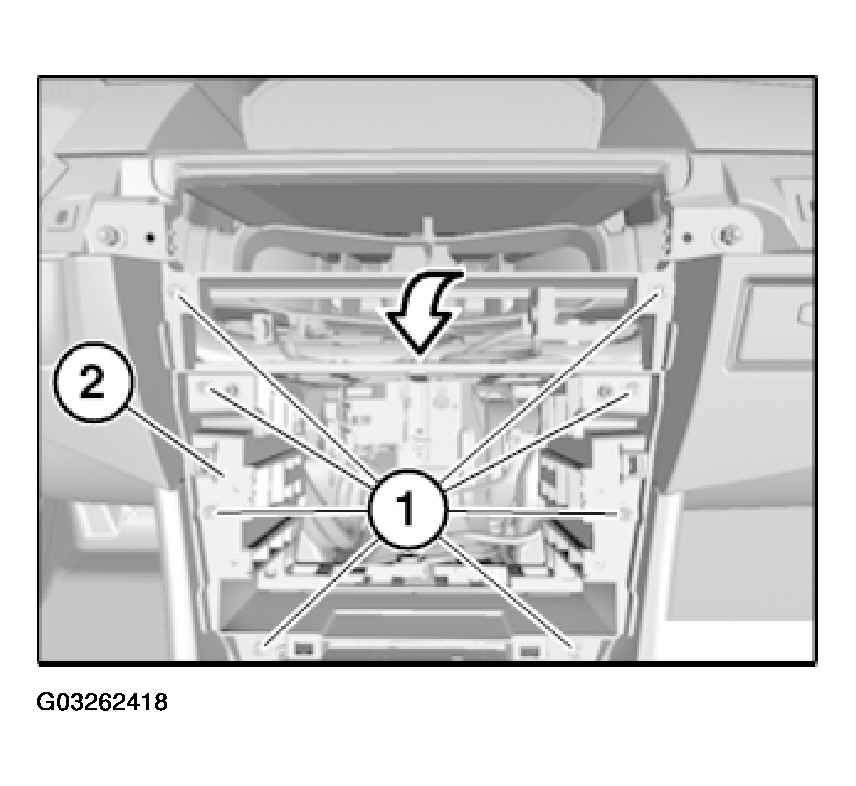

Release screws (1).
Fold back middle function carrier (2) in direction of arrow.
Installation:
Make sure middle function carrier (2) is correctly seated.

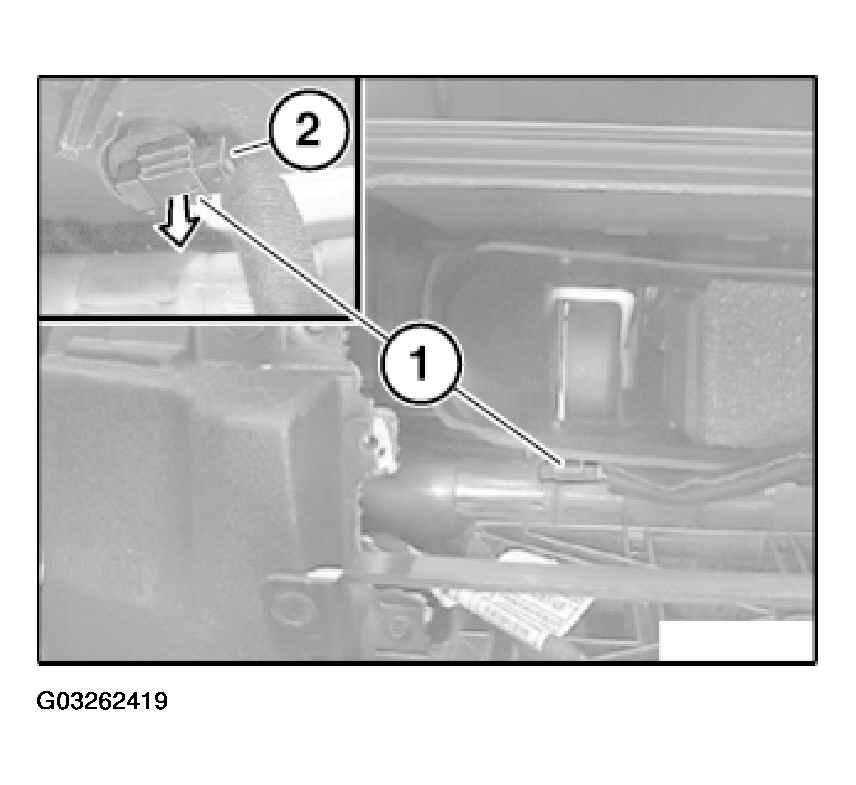

Turn temperature sensor for cold-air distributor (1) through approx. 90° and pull out in direction of arrow.
Unfasten plug connection (2) and disconnect.
Installation:
Make sure temperature sensor for cold-air distributor (1) is correctly seated.
