64 11 902 Replacing sensor fan for interior temperature
WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, and 2008 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove control panel for heater - A/C system. See 64 11 377 REMOVING AND INSTALLING (REPLACING) CONTROL PANEL FOR HEATER - A/C system .

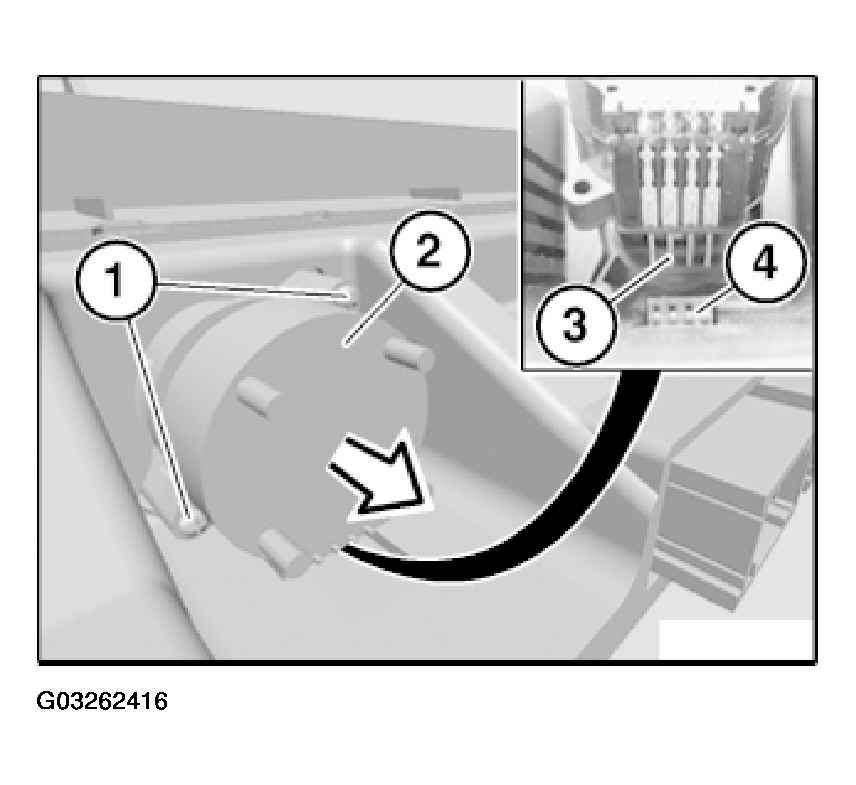

Release screws (1).
Pull out sensor blower for interior temperature (2) in direction of arrow.
Installation:
Make sure pins (3) are correctly seated in base (4).
