64 11 377 Removing and installing (replacing) control panel for heater - A/C system

WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, and 2008 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove middle trim for instrument panel. See 51 45 310 REMOVING AND INSTALLING (REPLACING) CENTRE INSTRUMENT PANEL TRIM (FROM 03/2007) .

Release screws (1).

Unclip control panel for heater - A/C system (2) all round and remove from middle trim for instrument panel (3).

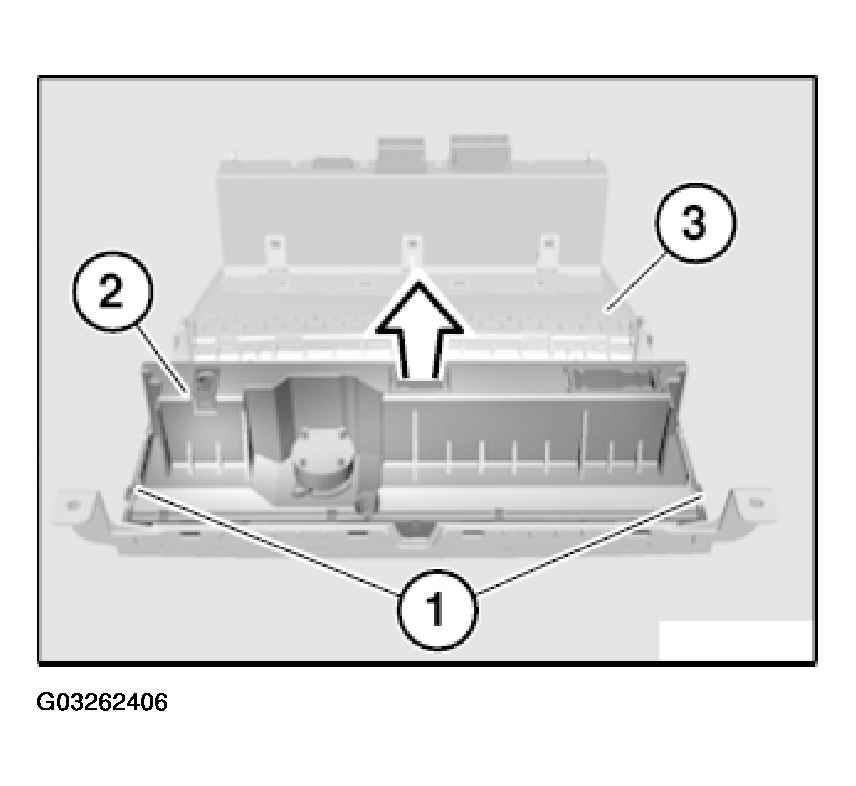

Fig 1: Unclipping Control Panel For Heater - A/C System

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Using BMW scan tool, carry out programming/coding.
