64 11 875 Removing and installing/replacing servodrive for defrosting flap
WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, and 2008 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove trim panel for pedal assembly. See 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .
- Remove air distributor in footwell and heating duct in rear compartment on left. See 64 11 943 Replacing evaporator temperature sensor .

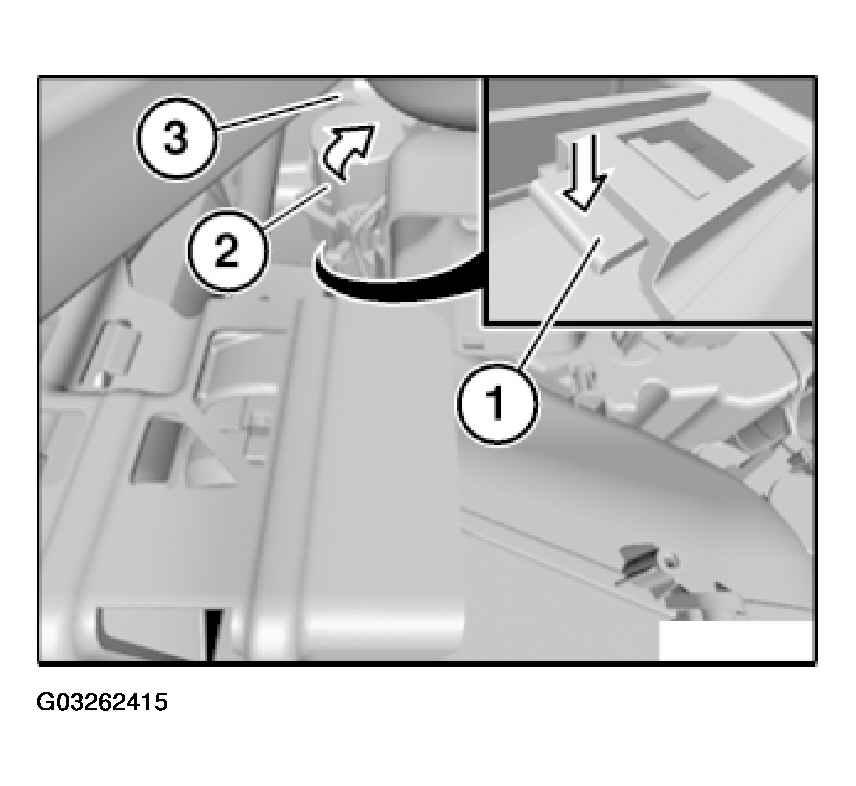

Press lock (1) and pull out servodrive for defrosting flap (2) in direction of arrow.
Unfasten plug connection (3) and disconnect.
Installation:
Follow repair instruction "Installing servodrive". See 64 11... Installing Servodrive .
Servodrive for defrosting flap (2) must snap audibly into place.
