64 11 850 Replacing servodrive for rear compartment flap
WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, and 2008 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove trim panel for pedal assembly. See 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .
- Remove air distributor in footwell and heating duct in rear compartment on left. See 64 11 943 Replacing Evaporator Temperature Sensor .

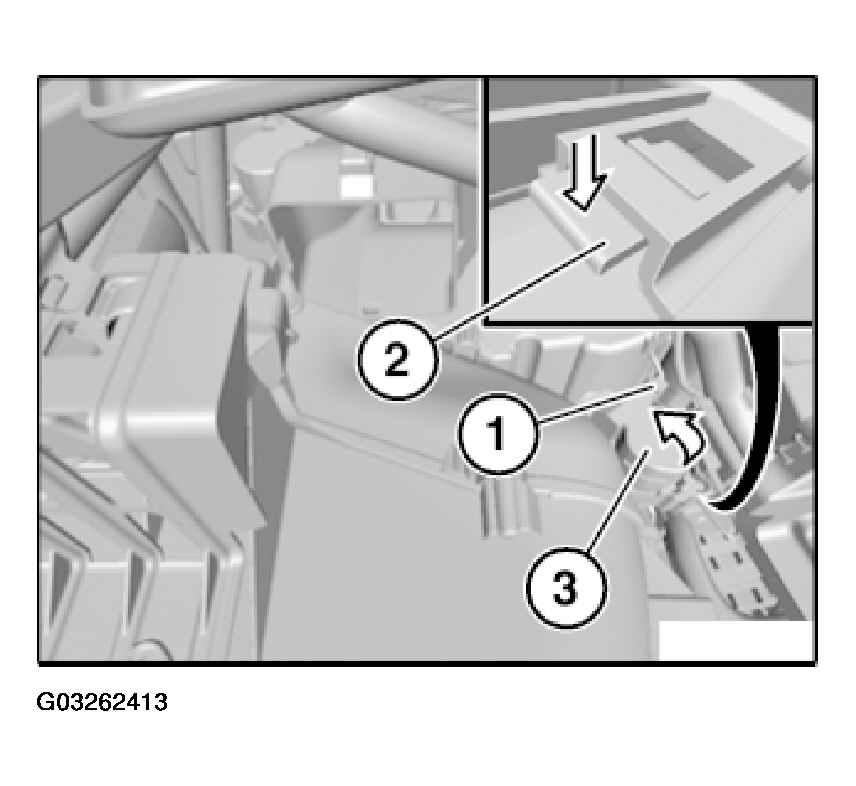

Unfasten plug connection (1) and disconnect.
Press lock (2) and pull out servodrive for rear compartment flap (3) in direction of arrow.
Installation:
Follow repair instruction "Installing servodrive". See 64 11... Installing Servodrive .
Servodrive for rear compartment flap (3) must snap audibly into place.
