64 11 842 Replacing servodrive for right footwell flap
WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, and 2008 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove trim for instrument panel. See 51 45 030 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM .

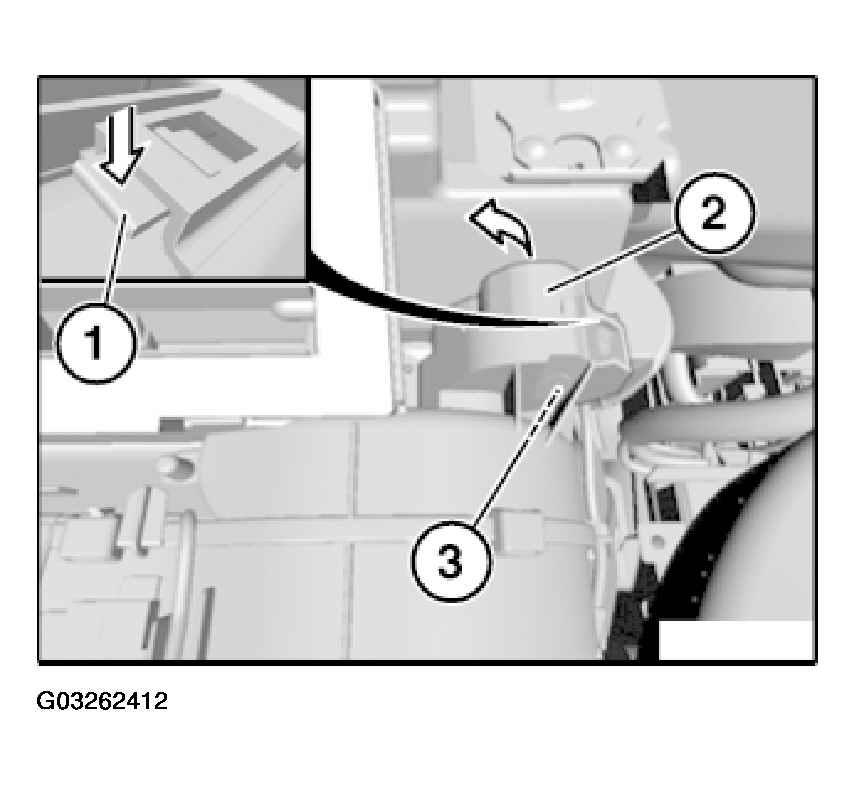

Press lock (1) and unclip servodrive for right footwell flap (2) in direction of arrow.
Unfasten plug connection (3) and disconnect.
Installation:
Follow repair instruction "Installing servodrive". See 64 11... Installing Servodrive .
