64 11 808 Removing and installing/replacing servodrive for right fresh-air/recirculatedair flap
WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, and 2008 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove bottom right trim panel from instrument panel. See 51 45 181 REMOVING AND INSTALLING/REPLACING BOTTOM RIGHT TRIM FOR INSTRUMENT PANEL .

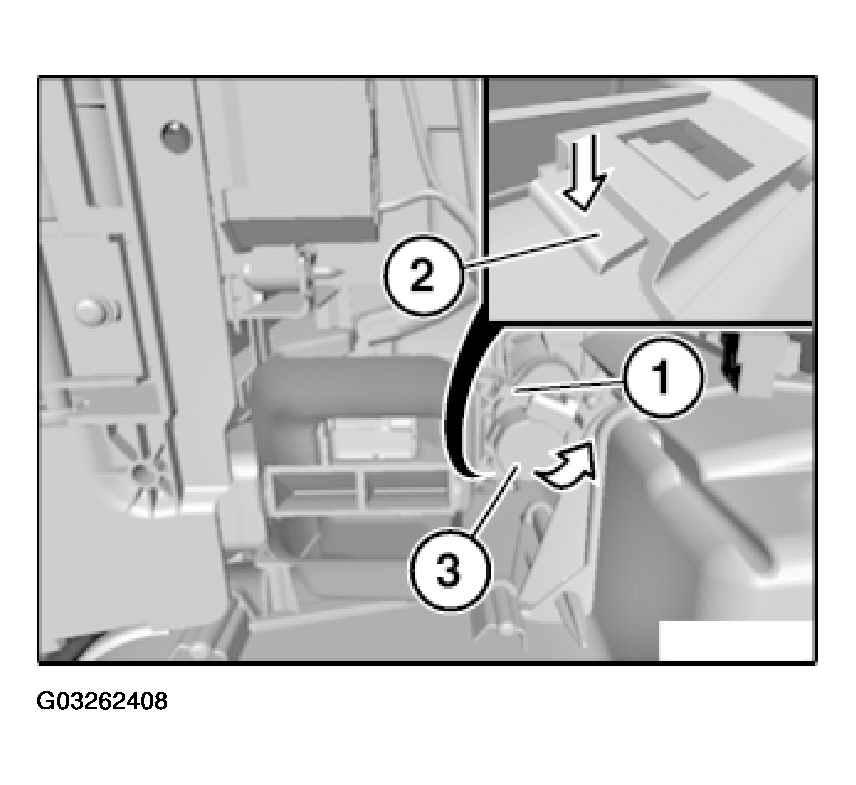

Unfasten plug connection (1) and disconnect.
Press lock (2) and pull out servodrive for right fresh air/recirculated-air flap (3) in direction of arrow.
Installation:
Follow repair instruction "Installing servodrive". See 64 11... Installing Servodrive .
Servodrive for right fresh-air/recirculated-air flap (3) must snap audibly into place.
