Removal & Installation

WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, and 2008 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove left underbody paneling. See 51 47... REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT UNDERBODY PANELING .

Seal off water hoses at fuel pump with special tool 13 3 010.

Fig 1: Sealing Water Hose With Special Tool 13 3 010

Courtesy of BMW OF NORTH AMERICA, INC.

Recycling

Fuel escapes when fuel lines are detached. Have a suitable collecting container ready.

Catch and dispose of escaping fuel.

Observe country specific disposal regulations.

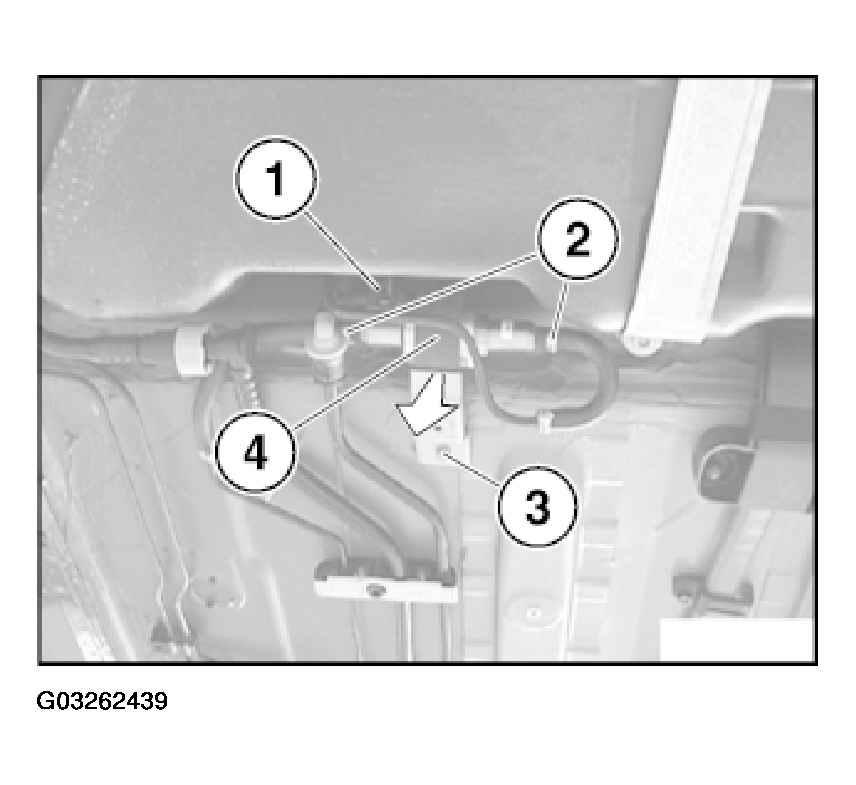

Unfasten plug connection (1) and disconnect.

Release hose clamps (2) and detach fuel hoses.

Unscrew bolt (3).

NOTE: Secure fuel pump (4) against falling out.

Remove fuel pump (4) in direction of arrow.

Installation:

Observe direction of flow of fuel pump (4).

Replacement:

Detach fuel pump (4) from fuel pump holder.

Fig 2: Detaching Fuel Pump From Fuel Pump Holder

Courtesy of BMW OF NORTH AMERICA, INC.
