51 47... Removing and installing/replacing left or right underbody paneling
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
M5
- If necessary, slacken TENSION STRUT TO TUNNEL SCREW CONNECTION
Release plastic nuts.

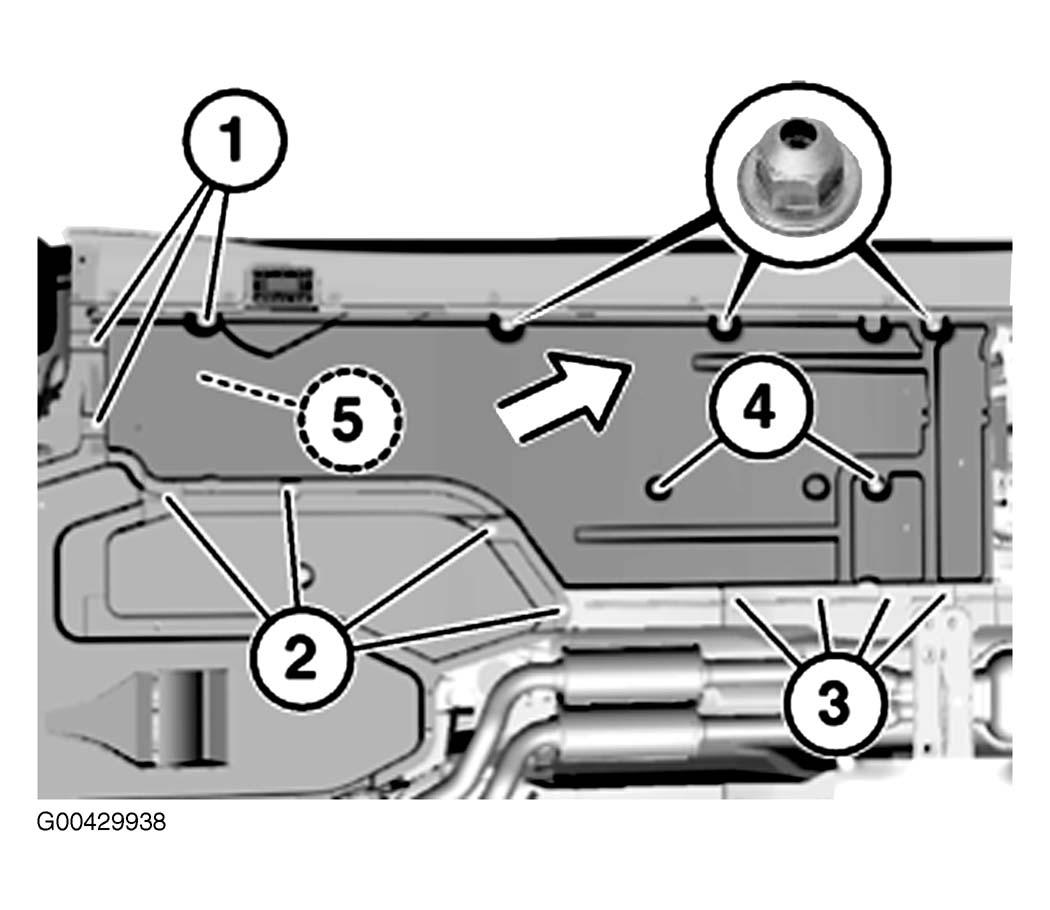

Release screws (1 to 3).
If necessary, release screw (5).
Release screws (4) and remove underbody paneling in direction of arrow.
Installation:
Replace damaged plastic nuts.
