64 12 590 Removing and installing or replacing muffler
WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, and 2008 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove left underbody paneling. See 51 47... REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT UNDERBODY PANELING .

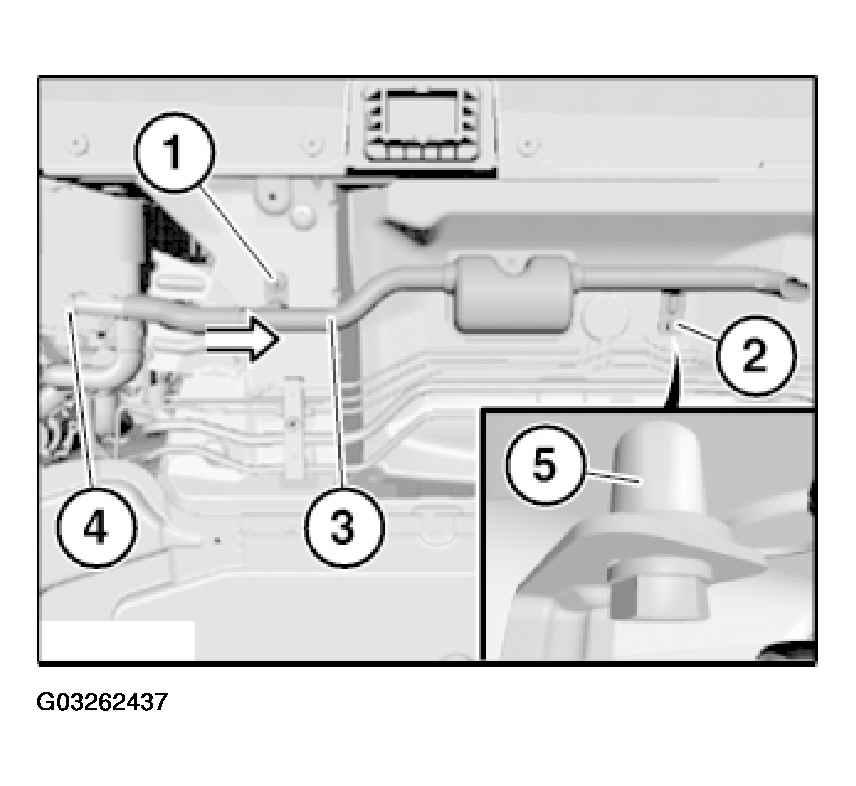

Unscrew nut (1).
Release screw (2).
Withdraw muffler (3) in direction of arrow from exhaust pipe (4).
Installation:
If necessary, replace blind rivet nut (5).
