64 12 120 Removing and installing/replacing intake muffler for independent/auxiliary heater
WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, and 2008 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove left front wheel.
- Remove front left wheel arch lining. See 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER .
- Remove left underbody paneling. See 51 47... REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT UNDERBODY PANELING .

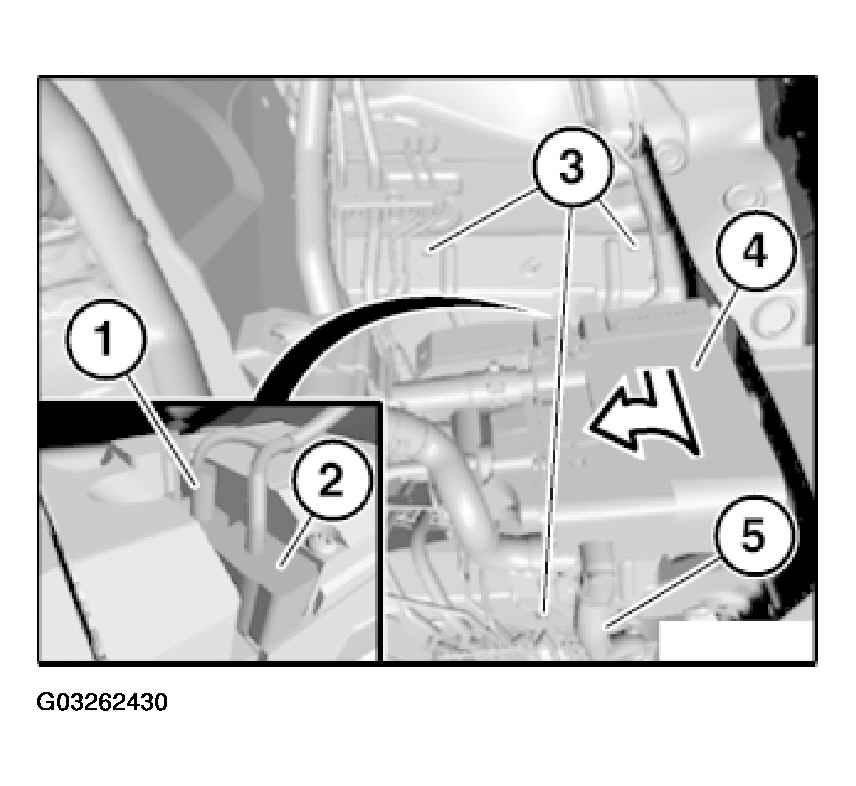

Disconnect plug connections (1) and (2).
IMPORTANT:
To avoid damaging the independent heater, it is absolutely essential to adhere to the following connecting sequence for the plug connections during installation:
- Plug connection (1)
- Plug connection (2)
Release screws (3).
Fold independent heater (4) in direction of arrow to one side.
Installation:
Make sure exhaust pipe of independent heater (4) is correctly seated in muffler (5).

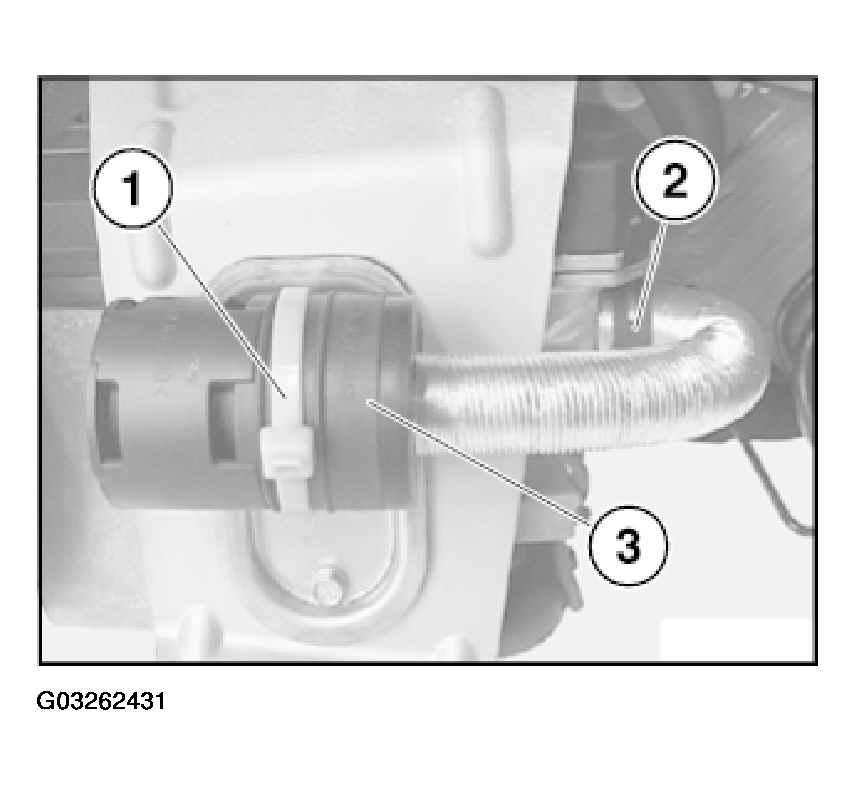

Detach cable strap (1).
Release spring clip (2) and detach corrugated tube from independent/auxiliary heater.
Remove intake muffler for independent/auxiliary heater (3).
