41 11 300 Replacing Cover For Longitudinal Member With Left Or Right Door Pillar (Partial Replacement B-Pillar, Rear Side Panel Removed)

WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2006 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL  and observe relevant procedures.

Spot-weld bonding is used on this vehicle.

Use only approved SPOT-WELDING APPARATUS  for repairs!

Place vehicle on straightening bench.

Following new body parts are required:

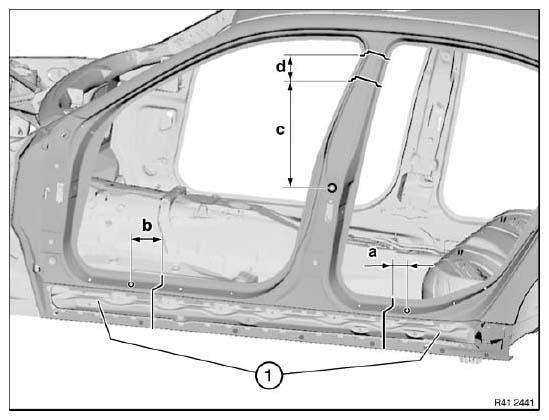

Mark severance cuts in accordance with specified measurements and cut.

IMPORTANT: Cut outer plate only for following severance cuts.

Measurement a = approx. 40 mm in front of bore dia. 6 mm.

Measurement b = approx. 90 mm behind bore dia. 6 mm.

Measurement c = approx. 460 mm above upper door hinge mounting.

Measurement d = approx. 80 mm above cut c.

Open weld joints on outer entrance attachment (1) before and after severance cuts and remove components.

Fig 2: Identifying Body Joints Gap
G05503233Courtesy of BMW OF NORTH AMERICA, INC.

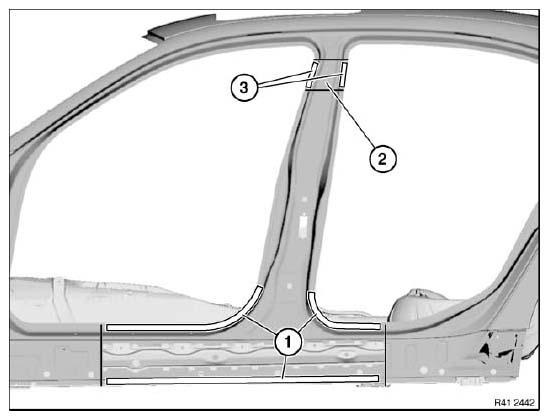

Open weld joints in areas (1) and (3).

Remove metal section (2).

Installation:

Apply repair welding spots in area (3) to existing welding spots on new component/car. This is necessary because the adhesive between the spot flanges acts as an insulator.

Fig 3: Identifying Metal Section And Open Weld Joints
G05503234Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut in accordance with specified measurement and cut.

Measurement a = 500 mm above upper door hinge mounting.

Fig 4: Identifying Open Weld Joints And Bonded Joints (1 Of 2)
G05503235Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: View from inside
Open weld joints and bonded joints in areas (1).
Fig 5: Identifying Open Weld Joints And Bonded Joints (2 Of 2)
G05503236Courtesy of BMW OF NORTH AMERICA, INC.

Release cavity acoustic baffle in area (1).

Open adhesive bonds in areas (2).

Fig 6: Release Cavity Acoustic Baffle In Area (1)
G05503237Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

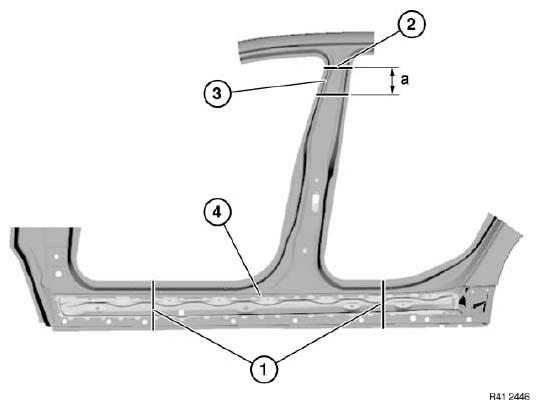

Mark severance cuts (1) on new part in accordance with previous severance cuts and cut.

IMPORTANT: Cut only outer plate at severance cut (2).

Measurement a = 80 mm below severance cut (2).

Open weld joints on sheet panel (3) and remove component.

Installation:

Cut-out sheet panel (3) is needed again to seal B-pillar.

Open weld joints on outer entrance attachment (4) between severance cuts and remove component.

Fig 7: Mark Severance Cuts On Part
G05512046Courtesy of BMW OF NORTH AMERICA, INC.

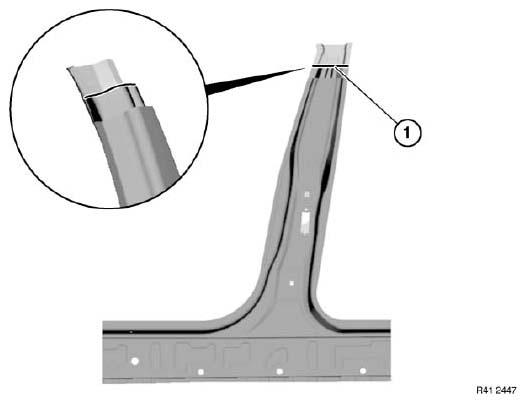

Mark severance cut (1) in accordance with vehicle and cut.

IMPORTANT: Cut only outer plate at severance cut (1).

Installation:

Weld in REINFORCING PANELS  at all severance cuts.

Fig 8: Mark Severance Cut
G05503239Courtesy of BMW OF NORTH AMERICA, INC.

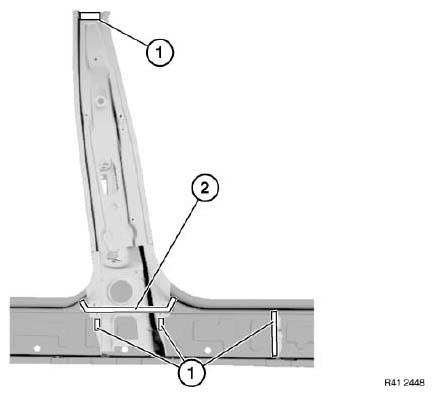

Apply ADHESIVE  in areas (1).

Apply window glass ADHESIVE  to cavity ACOUSTIC BAFFLE  (2).

Fig 9: Identifying Window Glass Adhesive Areas
G05503240Courtesy of BMW OF NORTH AMERICA, INC.

Installation information:

Adjust new part to fit with straightening attachment or universal mount.

Adjust outer entrance attachment to fit after pressing down on paintwork on body and new part.

Prepare flange area of entrance attachment for plug welding.

Hole diameter approx. 5 to 6 mm

Fig 10: Hole Diameter Approx. 5-6 mm
G05503241Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Apply repair welding spots in areas (1) next to existing welding spots on new component/car.

Fig 11: Identifying Welding Spots In Area (1 Of 2)
G05503242Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

BOND  and rivet new part in area (1).

Use Hemlock 813 blind rivet

Service picture board - Aluminum and steel/bonding and welding).

Double number of rivets with respect to welding spots in area (1).

Fig 12: Identifying Welding Spots In Area (2 Of 2)
G05503243Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Observe the following procedure when setting the rivets:

IMPORTANT: Risk of damage!
  • Rivet head must rest flat in relation to sheet metal flange.

    To do so, bend sheet metal flange slightly.

    Reshape sheet metal flange after setting rivets.

    Rivet heads that do not rest flat will cause damage to the riveting tongs!

  • Do not damage the floor panel behind when drilling the rivet holes.
