66 31 001 Adjust ACC sensor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

36 1 100

Special tool required:

Active Cruise Control ACC adjusting device, complete.

Consisting of:

Mirror, complete
Wheel laser
Slotted diaphragm
Control holder (for initial installation of rail)
Rail
Setup and Operating Instructions (not shown)

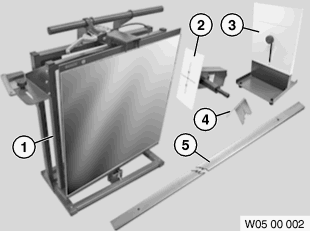

Fig 1: Cruise Control ACC Adjusting Device

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: A mounting which is not included in the delivery specification is required to support the wheel laser. Use either the quick-action clamp from the existing KDS or ACC wheel holder (36 1 100).

NOTE: Follow notes for ACC adjusting device .

NOTE: To set the ACC sensor, connect the BMW diagnosis system and fit the ACC adjusting device. Select ACC calibration in diagnosis.

Service function
Chassis and suspension
ACC cruise control
Start-up of ACC sensor

Handle ACC adjusting device in accordance with mounting and Owner's Handbook provided with device.

NOTE: Further information on the ACC adjusting device can be found in the BMW Workshop Equipment and Planning Documentation.

If a correction angle is specified via the diagnosis, the following operations can be performed to obtain a maximum angle correction of ± 1°.

Loosen, but to not remove, screws (1 and 2) at the marked locations. Installation note: Tighten screws (2) followed by screws (1). Tightening torque 66 31 2AZ .

Fig 2: Loosen Screws At Marked Locations

Courtesy of BMW OF NORTH AMERICA, INC.

Output of a negative correction angle: Turn holder ACC (1) clockwise (arrow 2) all the way. Output of a positive correction angle: Turn holder ACC (1) anticlockwise (arrow 3) all the way.

Fig 3: Turning Holder ACC

Courtesy of BMW OF NORTH AMERICA, INC.

The following step must be taken if there is an "Incorrectly adjusted sensor" fault entry or there is a suspicion of frontal damage.

IMPORTANT: The vehicle must be parked on a flat, horizontal surface!

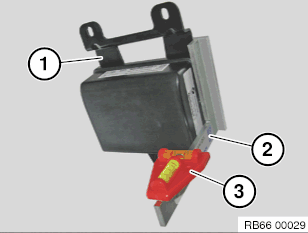

NOTE: For purposes of clarity, graphic shows holder (1) removed.

Hold square (2) against holder (1) as shown. Limit stop leg length: approx. 105 mm Check vertical orientation in direction of travel with bubble level (3). Replace holder if necessary.

Fig 4: Checking Vertical Orientation In Direction Of Travel

Courtesy of BMW OF NORTH AMERICA, INC.
