51 12 162 Removing and installing/replacing rear bottom middle bumper trim

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim for bumper trim, see 51 12 223 Removing and installing/replacing trim for rear bottom middle bumper trim .

Release expansion rivet (1).

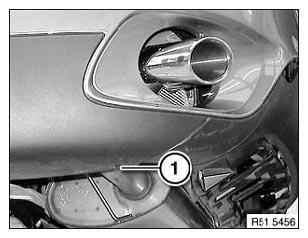

Fig 1: Identifying Expansion Rivet

G06212430

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Park Distance Control (PDC):

Remove storage compartment in luggage compartment on right, see 51 47... Removing and installing/replacing storage compartment in luggage compartment on left or right .

Disconnect plug connection (1).

Feed through cable (2) with grommet (3) in outward direction.

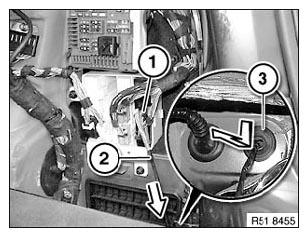

Fig 2: Identifying Cable, Grommet And Plug Connection

G06212431

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1 and 2).

Unclip lower section (3) and remove.

Fig 3: Identifying Lower Section And Screws

G06212424

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) must not be damaged

Replacement:

Remove ultrasonic transducer , see 66 20 518 REMOVING AND INSTALLING/REPLACING A FRONT ULTRASONIC TRANSDUCER (CENTRE) .
Remove wiring harness

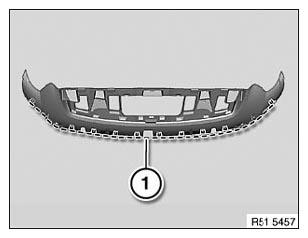

Fig 4: Identifying Catches

G06212433

Courtesy of BMW OF NORTH AMERICA, INC.
