41 35... Removing And Installing Or Replacing Front Left Or Right Side Wall

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Observe 41 00... BODY GAP DIMENSIONS

CAUTION: Do not damage adjoining body components.

Necessary preliminary tasks:

Remove front bumper trim. See 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .
Remove wheel arch cover at front. See 51 71 038 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER (FRONT SECTION) .
Remove trim for cover on side member. See 51 71 447 REMOVING AND INSTALLING OR REPLACING PANEL FOR COVER ON LEFT OR RIGHT SIDE MEMBER .
Remove trim on wheel arch. See 51 71 470 REMOVING AND INSTALLING/REPLACING TRIM ON FRONT LEFT OR RIGHT WHEEL ARCH .
Remove gutter strip. See 51 31 023 REMOVING AND INSTALLING LEFT OR RIGHT GUTTER STRIP ALONG WINDSCREEN .
Remove auxiliary direction indicator. See 63 13 200 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT AUXILIARY DIRECTION INDICATOR .
Release high-pressure nozzle for headlight washer system from side panel. See 61 67 100 REMOVING AND INSTALLING/REPLACING HIGH-PRESSURE NOZZLE OF HEADLIGHT WASHER SYSTEM ON LEFT (OR RIGHT) .

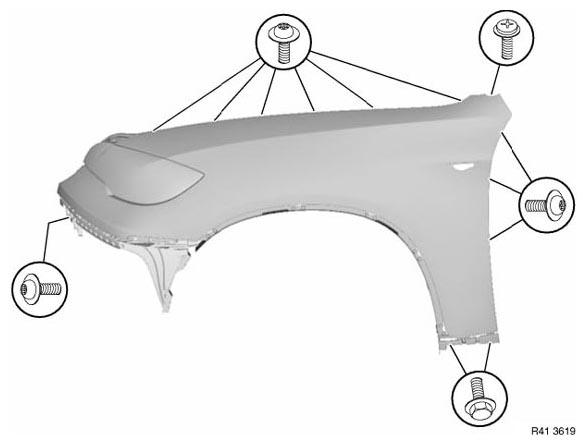

Fig 1: Identifying Bolts

G06212325

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

NOTE: Side panel and headlight are removed together.

Tightening torque 41 35 6AZ , see 41 35 SIDE PANELS

Tightening torque 41 35 7AZ , see 41 35 SIDE PANELS .

Tightening torque 41 35 8AZ , see 41 35 SIDE PANELS .

Tightening torque 41 35 9AZ , see 41 35 SIDE PANELS .

Release screw (1).

Tightening torque 41 35 6AZ , see 41 35 SIDE PANELS .

Fig 2: Identifying Screw

G04791336

Courtesy of BMW OF NORTH AMERICA, INC.

View of wheel arch from below:

Unlock plug (1) for headlight (2) and disconnect.

Release screws (3).

Tightening torque 41 35 6AZ , see 41 35 SIDE PANELS .

Fig 3: Identifying Plug, Headlight And Screw

G06212327

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out retainer (1) in direction of arrow.

Take off side panel.

NOTE: When the headlight is fitted, the side panel's center of gravity is very far forward!

Fig 4: Pulling Out Retainer

G04791330

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts must not be damaged or missing:

Spacer buffers (1)

Fig 5: Identifying Spacer Buffers

G04791338

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove headlight. See HEADLIGHTS .
