41 34 060 Replacing Outer And Inner Tail Panel Sections: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL and observe relevant procedures.

STRIP DOWN vehicle

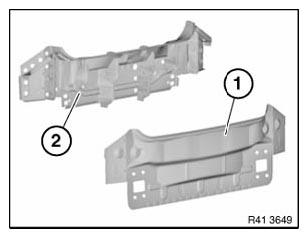

Following new body parts are required:

(1) Rear trim
(2) Rear trim, inner

Fig 1: Identifying Rear Trim And Rear Trim, Inner

G06212286

Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the work step shown symmetrically to the other side of the vehicle.

Open weld joints (1).

Open brazed joints (2).

Open spot weld bonding joints (3).

Remove rear trim.

Fig 2: Identifying Weld Joints Area And Brazed Joint Areas

G06212285

Courtesy of BMW OF NORTH AMERICA, INC.

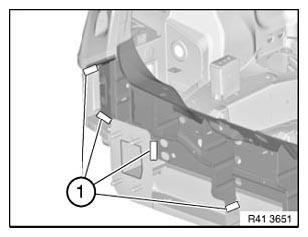

Carry over the work step shown symmetrically to the other side of the vehicle.

Open weld joints (1).

Fig 3: Identifying Weld Joints Area

G06212288

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1) and (2).

Fig 4: Identifying Punch Rivets And Riveting Area

G08528680

Courtesy of BMW OF NORTH AMERICA, INC.

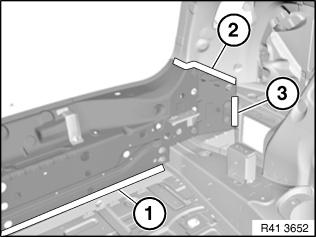

Open welded connections in areas (1) to (3).

Remove inner rear trim panel section.

Fig 5: Identifying Weld Joints Area

G06212289

Courtesy of BMW OF NORTH AMERICA, INC.
