41 12 560 Replacing Luggage Compartment Floor (Tail Panel Has Been Removed): Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of BODY, GENERAL and observe relevant service information.
STRIP DOWN vehicle
Following new body parts are required (see BMW Electronic Parts Catalogue):

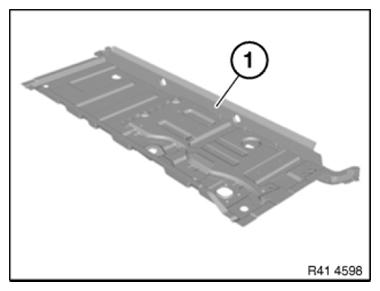

- (1) Luggage compartment floor
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5a | 2 |
| Blind rivet N3 | 21 |
| EMC screws | 7 |
| Cleaning agent R1 | 1 |
| Sealant D1 |
