41 12 557 Replacing Luggage Compartment Floor, Middle Stripping Operations (Tail Panel Removed)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.
The following list basically represents the removal sequence.
- Remove exhaust system
- Remove heat shield
- Remove positive battery cable
- Remove air supply system

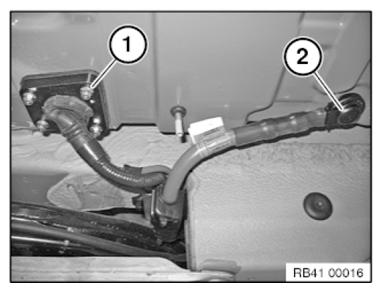

Release nuts for sealing flange connection (1).
Remove sealing flange connection with positive battery cables (2) and set aside.
Installation note:
Make sure gasket is correctly installed. (watertightness).
Replace gasket if necessary.
Replace M5 nuts for sealing flange connection.
IMPORTANT:
Risk of damage!
Protect positive battery cables against mechanical damage.
Protect positive battery cables against mechanical damage.
