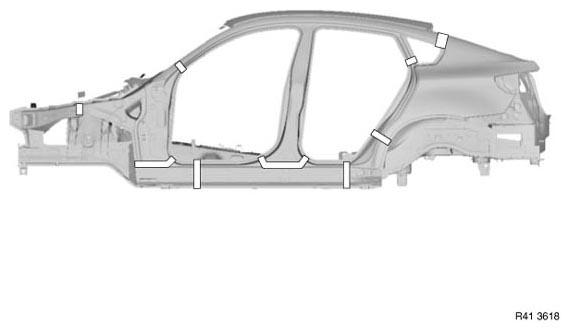

41 00... Position Of Shaped Parts For Cavity Acoustic Baffle
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Cavity sealing is carried out in specific body areas in order to reduce internal noise and to reduce condensate. To do this, shaped parts are inserted in the cavities. These shaped parts adapt themselves optimally due to heating of the body to approx. 180°C by expansion to the shape of the cavities.
Because it is not possible to heat the body to this extent for a body repair, a different procedure has been specified for this situation. See installation procedures for cavity acoustic baffle (expanded) , cavity acoustic baffle (not expanded) and cavity acoustic baffle installation with 2-component PU cavity foam .
