22 11 110 Replacing Left Engine Support Arm (N63)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Secure engine in installation position. See 11 00 670 SECURING ENGINE IN INSTALLATION POSITION (N63) .
- Remove underbody protection . See 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION .
- Remove reinforcement plate . See 31 10 010 REMOVING AND INSTALLING/REPLACING REINFORCEMENT PLATE .
- Remove front differential . See 31 50 001 REMOVING AND INSTALLING/REPLACING FRONT DIFFERENTIAL .

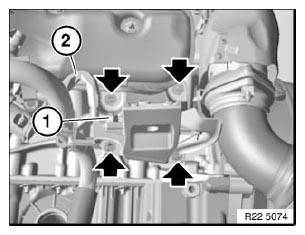

Release nut (1) and grounding strap (2).
Release screws and engine support arm.
Tightening torque. See 22 11 3AZ in ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES (N54, N63) .
