65 50 055 Removing and installing/replacing central information display (Version 2)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove center fresh air grille . See 64 22 162 REMOVING AND INSTALLING OR REPLACING MIDDLE FRESH-AIR GRILLE (128i) or 64 22 162 REMOVING AND INSTALLING OR REPLACING MIDDLE FRESH-AIR GRILLE (135i) .
Remove Car Communication Computer

Release bolts (1).

Lever out central information display (2) in direction of arrow.

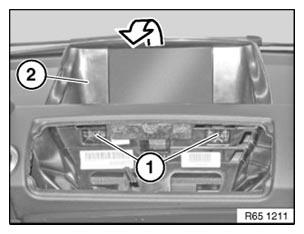

Fig 1: Identifying Central Information Display And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Disconnect plug connection (2) and release associated wiring harness.

Installation:

Make sure wiring harness is correctly laid and secured.

Remove central information display (3).

Installation:

Trim (4) must be correctly engaged.

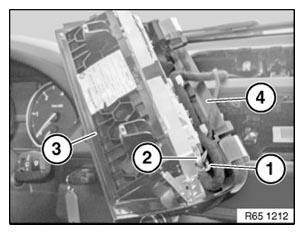

Fig 2: Identifying Plug Connection And Central Information Display

Courtesy of BMW OF NORTH AMERICA, INC.
