65 83 010 Removing and installing/replacing Car Communication Computer

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection) . See 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

NOTE: Comply with notes and instructions on handling optical waveguides . See 61 00... NOTES ON HANDLING OPTICAL FIBERS .

Necessary preliminary tasks:

Disconnect negative battery cable . See 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD (CONVERTIBLE)
Remove central trim for instrument panel . See 51 45 310 REMOVING AND INSTALLING (REPLACING) CENTRE TRIM FOR INSTRUMENT PANEL .

Release screws (1).

Pull back Car Communication Computer (2) a little and disconnect plug connection.

Remove Car Communication Computer (2).

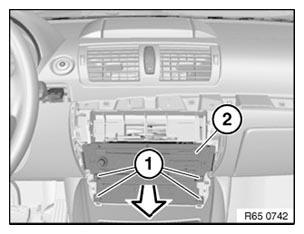

Fig 1: Identifying Car Communication Computer With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding .
