65 50 055 Removing and installing/replacing central information display (Version 1)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove center fresh air grille . See 64 22 162 REMOVING AND INSTALLING OR REPLACING MIDDLE FRESH-AIR GRILLE (128i) or 64 22 162 REMOVING AND INSTALLING OR REPLACING MIDDLE FRESH-AIR GRILLE (135i) .
Remove Car Communication Computer

Open monitor (1) as illustrated.

Release screws (2).

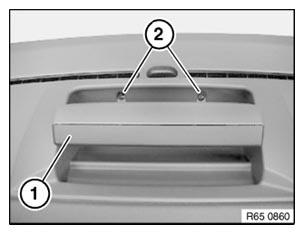

Fig 1: Identifying Monitor And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts (1).

Disconnect plug connection (2) and release associated wiring harness.

Installation:

Make sure wiring harness is correctly laid and secured.

Raise central information display (3) on passenger side.

Disconnect plug connection (4).

Feed out associated wiring harness and remove central information display (3).

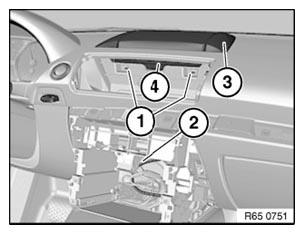

Fig 2: Identifying Plug Connection And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure wiring harness of central information display (3) is correctly routed.
