65 12 072 Removing and installing amplifier (replacing hi-fi system) (Late Version)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection) . See 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Disconnect battery negative lead . See 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
Remove rear left side trim panel . See 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

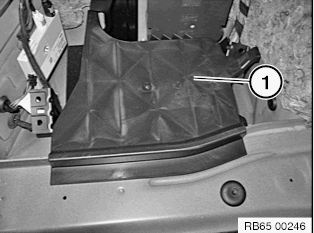

Take off cover for amplifier (1) in upward direction.

Fig 1: Removing Cover From Amplifier

Courtesy of BMW OF NORTH AMERICA, INC.

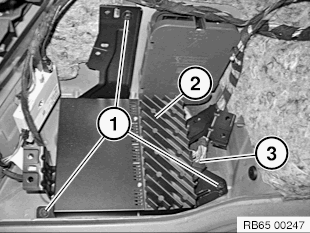

Release screws (1). Unfasten plug connection (3) and disconnect. Remove amplifier (2) with holder by pulling upward.

Fig 2: Removing Amplifier With Holder

Courtesy of BMW OF NORTH AMERICA, INC.

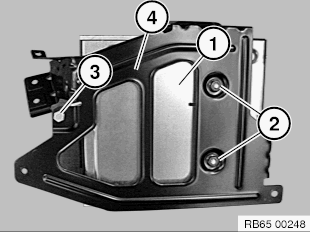

Release nuts (2) and screw (3). Remove holder (4) from amplifier (1).

Fig 3: Removing Holder From Amplifier

Courtesy of BMW OF NORTH AMERICA, INC.
