64 11 839 Replacing Servodrive For Footwell Flap (Automatic A/C)

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Servomotors must be re-addressed in the event of replacement!

Addressing can only be carried out with the BMW diagnosis system.

Service functions:

Body
Heating and A/C function
Flap motors
Re-address flap motors

Necessary preliminary tasks:

Remove right glovebox with housing. Refer to RIGHT GLOVEBOX WITH HOUSING (Coupe) or RIGHT GLOVEBOX WITH HOUSING (Convertible).
Remove storage compartment. Refer to STORAGE COMPARTMENT (Coupe) or STORAGE COMPARTMENT (Convertible).

Detach right footwell heating duct (1) in area (2) in direction of arrow.

Detach right footwell heating duct (1) with adapter (3) from heater/air conditioner and remove in direction of arrow from right rear compartment heating duct (4).

Fig 1: Detaching Right Footwell Heating Duct With Adapter From Heater/Air Conditioner

Courtesy of BMW OF NORTH AMERICA, INC.

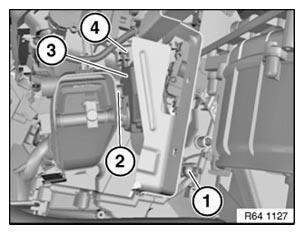

Release screws (1) and (2).

Remove bracket (3) with servodrive for footwell flap from heater/air conditioner (4).

Installation:

Make sure bracket (3) is correctly seated on heater/air conditioner (4).

Fig 2: Identifying Heater/Air Conditioner & Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

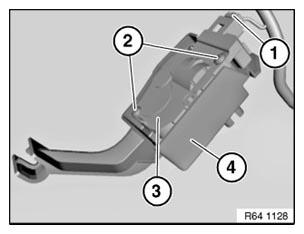

Unfasten plug connection (1) and disconnect.

Release screws (2).

Remove servodrive for footwell flap (3) from bracket (4).

Fig 3: Identifying Plug Connection With Screws

Courtesy of BMW OF NORTH AMERICA, INC.
