54 34 440 Removing And Installing/Replacing Convertible Top Compartment Lid Mechanism On Left Or Right

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Convertible top compartment lid . Refer to 41 63 060 REMOVING AND INSTALLING CONVERTIBLE TOP COMPARTMENT LID .

WARNING:

Soft top becomes pressureless without a warning signal.

For all work, secure soft top with a suitable support tool against collapsing.

Ensure Convertible top is supported in the middle.

Ignition must remain switched off during the repair work.

Failure to comply with this instruction may result in the hydraulic valves incurring preliminary damage.

Installation:

Microencapsulated screws/nuts (Loctite) must be replaced and may not be reused
Screw connection must be completed within 20 minutes (start of curing)
Microencapsulated screws/nuts must not be retightened
Threads of nuts/bolts must be cleaned beforehand in event of repeated use

IMPORTANT:

Never lift off ball socket with engaged retainer.

Replaced overelongated retainers.

Before installation, grease ball socket if necessary.

Installation:

Pack grease into two opposite positions in socket.

The grease spreads after installation on the ball pin all round in the ball socket.

Removing/installing ball sockets:

Push on retainer in direction of groove with screwdriver
Lift off ball socket from ball pin
Slide retainer back
Fit ball socket on ball stud and snap into place with force

Fig 1: Pushing On Retainer In Direction Of Groove With Screwdriver
Courtesy of BMW OF NORTH AMERICA, INC.

Removing hydraulic cylinder on left or right:

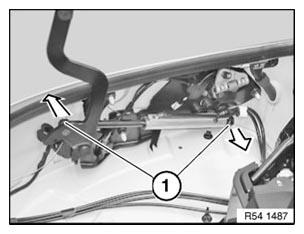

Push on locking clamps (1)
Detach ball sockets at sides.
Feed out hydraulic cylinder.

Fig 2: Pushing Locking Clamps
Courtesy of BMW OF NORTH AMERICA, INC.

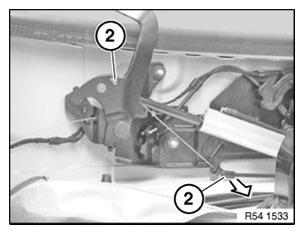

Unclip Bowden cable grommet (1).

Unhook Bowden cable nipple (2).

Fig 3: Unhooking Bowden Cable Nipple

Courtesy of BMW OF NORTH AMERICA, INC.

Left side of vehicle only:

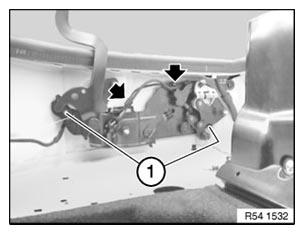

Release screws (1).

Remove Hall sensors.

Unclip wiring harness and feed out from Convertible top compartment lid mechanism.

Fig 4: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

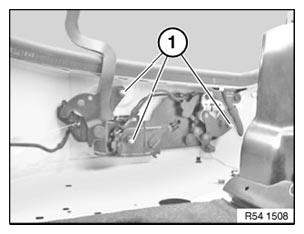

Unscrew nuts (1).

Remove Convertible top compartment lid mechanism.

Fig 5: Identifying Convertible Top Compartment Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
