41 63 060 Removing And Installing Convertible Top Compartment Lid

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Open convertible top.

IMPORTANT: Risk of damage!

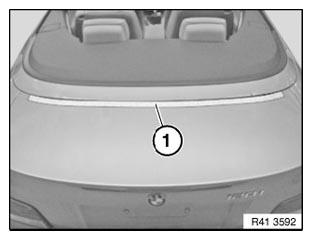

Tape off edge of rear lid in area (1) with plastic adhesive tape.

G06176500

Courtesy of BMW OF NORTH AMERICA, INC.

Move convertible top into position shown.

IMPORTANT:

Risk of injury!

Secure convertible top compartment lid against falling closed.

Switch off ignition. (This depressurizes the system).

G06178059

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage.

Carry over the work step shown symmetrically to the other side of the vehicle.

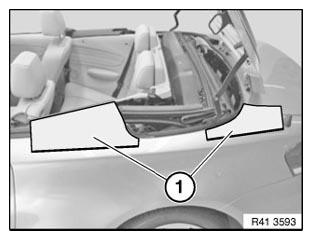

Cover areas (1).

G06176502

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If fitted: Remove aerial of Global Positioning System (GPS). Refer to 65 90 540 REMOVING AND INSTALLING/REPLACING AERIAL OF GLOBAL POSITIONING SYSTEM (GPS) .

Carry over the work step shown symmetrically to the other side of the vehicle.

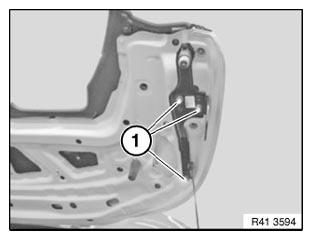

Unscrew nuts (1).

Tightening torque, see 41 63 2AZ in 41 63 CONVERTIBLE TOP COMPARTMENT LID .

G06176503

Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the work step shown symmetrically to the other side of the vehicle.

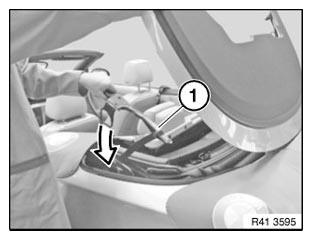

Lay convertible top compartment lid mechanism (1) in convertible top compartment.

G06176504

Courtesy of BMW OF NORTH AMERICA, INC.

Open rear lid with ignition key.

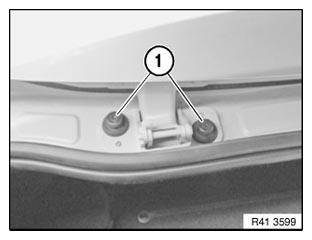

Remove out cover caps (1) and release screws underneath (1) underneath.

Tightening torque, see 41 63 4AZ in 41 63 CONVERTIBLE TOP COMPARTMENT LID .

G06176505

Courtesy of BMW OF NORTH AMERICA, INC.

Secure rear lid (1) in position shown.

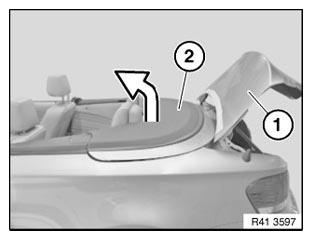

Feed out convertible top compartment lid (2) with aid of a second person in direction of arrow.

Set convertible top compartment lid down on a clean surface.

Installation:

Positioning aids remove the need for adjustment after installation.
