52 24... Removing And Installing/Replacing Ski Bag With Casing On Rear Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear seat back . Refer to 52 24 010 Removing And Installing/Replacing Rear Seat Backrest .

Lever out rear casing cover with plastic wedge.

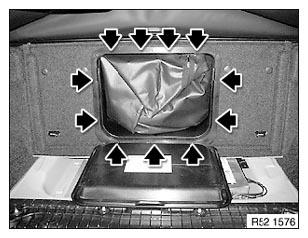

Fig 1: Locating Ski Bag With Casing On Rear Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: See 52 24 05AZ in 52 24 REAR SEAT (NORMAL), MANUAL .

Release screw (2) for retaining strap.

Tightening torque: See 52 24 04AZ in 52 24 REAR SEAT (NORMAL), MANUAL .

Remove transportation bag.

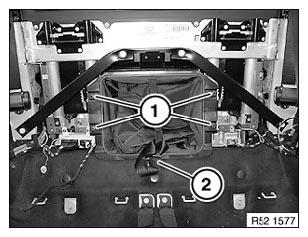

Fig 2: Identifying Release Screws & Retaining Strap

Courtesy of BMW OF NORTH AMERICA, INC.
