Special Tools Required

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

52 0 050 PLIERS

Necessary preliminary tasks:

Remove rear seat back . Refer to 52 24 010 Removing And Installing/Replacing Rear Seat Backrest

Release screws (1).

Remove trim for lock.

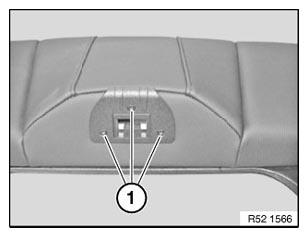

Fig 1: Identifying Release Screws & Trim Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out welt from backrest cover all round with plastic wedge.

Release retainers in marked area (1).

Installation:

Replace retainers.

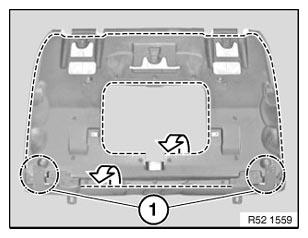

Fig 2: Releasing Retainers In Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover and padding:

Release all retainers in marked area
Remove cover from padding
Remove remaining retainers from cover and padding

Fig 3: Releasing Retainers In Marked Area
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert new retainer (2) with special tool 52 0 050.

In so doing, enclose wire in padding and trim wire of cover and bend closed.

Padding
Retainer
Trim wire in padding
Trim wire in seat cover
Backrest cover

Fig 4: Identifying Retainer With Special Tool 52 0 050
Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

Remove all trim wires from cover
If necessary, cut pockets in new cover for trim wires
Push trim wires into cover pockets

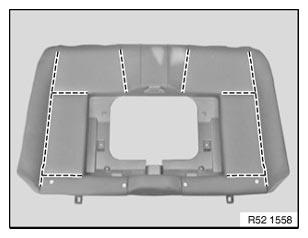

Fig 5: Identifying Retainers Clips Area
Courtesy of BMW OF NORTH AMERICA, INC.
