Special Tools Required
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of injury!
There is a danger of trapping when working in the area of the convertible top system.
Make sure convertible top is not actuated during work.
Necessary preliminary tasks:
- Open convertible top compartment lid, fold in convertible top if necessary

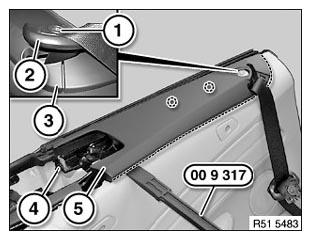

Unclip trim (1) for belt deflector with a suitable plastic wedge.
Release screw (1) and remove belt deflection fitting (2).
Tightening torque, see 72 11 03AZ in 72 11 SEAT BELTS and/or 72 11 SEAT BELTS .
Unclip trim (3).
Release screw (4).
Unclip side trim panel upper section (5) with special tool 00 9 317 from retainers.
Feed side trim panel upper section (5) out of seat belt and lay to one side.
Installation:
Make sure trim (3), side trim panel upper section (5) and belt guide are correctly seated.
