51 45 031 Replacing Instrument Panel Trim

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove instrument panel trim

Depending on version:

Remove Central Information Display
Remove solar sensor

NOTE: Description is shown on the E87 by way of example. There may be differences in detail in the case of other models.

Release screws (2) and remove steering column gap cover (1) trim panel (5).

Release screws (3) and remove cover (4) from trim panel (5).

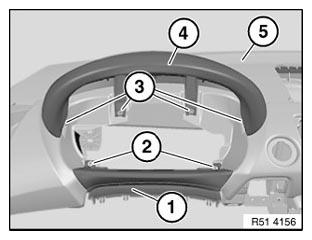

Fig 1: Identifying Screws & Cover On Trim Panel

G06176899

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary release screws (1 and 2).

If necessary, remove passenger airbag channel (3) from trim panel (4).

Fig 2: Identifying Passenger Airbag Channel On Trim Panel

G05779347

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove holder (2).

None of the speed nuts (4) and clips (5) on trim panel (3) must not be damaged.

Fig 3: Identifying Speed Nuts & Clips On Trim Panel

G05779346
