51 23 210 Removing And Installing/Replacing Cable For Hood/Bonnet Lock (In Engine Compartment)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

00 9 317 TRIM PANEL WEDGE

WARNING:

Scalding hazard!

Only perform work after engine has cooled down.

Necessary preliminary tasks:

Remove hood/bonnet lock

Lever out cover (1) from coupler (2) in direction of arrow.

Lever out Bowden cable (3) in direction of arrow and remove.

Fig 1: Levering Out Bowden Cable

G04788638

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip coupler (1) with special tool 00 9 317 in direction of arrow.

Fig 2: Uncliping Coupler Using Special Tool 00 9 317

G04788639

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1 and 2) on cable for hood/bonnet lock (3) must not be damaged.

Fig 3: Identifying Catches On Cable For Hood/Bonnet Lock

G04788640

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cable (1) from retaining clip (2) and feed out through front panel (3).

Installation:

Retaining clip (2) must not be damaged.

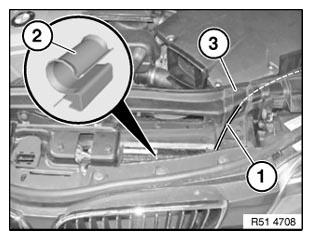

Fig 4: Identifying Cable & Retaining Clip

G06176775

Courtesy of BMW OF NORTH AMERICA, INC.
