51 23 105 Removing And Installing/Replacing Right Hood/Bonnet Lock

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Scalding hazard!

Only perform work after engine has cooled down.

Release screws (1) and remove intake duct (2).

Release screws (3) and feed out hood/bonnet lock (4) sideways.

Tightening torque, see 51 23 2AZ in 51 23 HOOD/BONNET LOCKS .

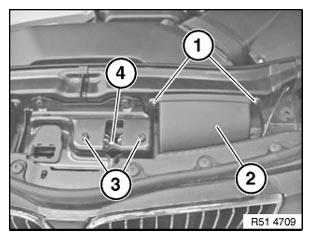

Fig 1: Identifying Intake Duct With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Engine hood/bonnet lock (2) shown without attachment parts for purposes of clarity.

Disengage Bowden cable (1) from hood/bonnet lock (2).

Fig 2: Disengaging Bowden Cable From Hood/Bonnet Lock

Courtesy of BMW OF NORTH AMERICA, INC.
