51 11 187 Removing And Installing/Replacing Grille In Bumper Trim On Left Or Right
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove FRONT BUMPER TRIM
Vehicles with fog lamps only:
- Remove fog lamp . See LIGHTS - REPAIR (128i) or LIGHTS - REPAIR (135i) .
Vehicles without fog lamps only:

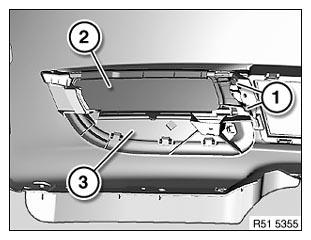

Release catches (1) and feed fog lamp cover (2) out of fog lamp mounting (3).
Installation:
Catches (1) on fog lamp cover (2) must not be damaged.

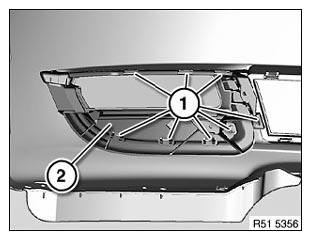

Release catches (1) and remove fog lamp mounting (2) from bumper trim.
Installation:
Catches (1) must not be damaged
