51 11 050 Removing And Installing/Replacing Carrier For Front Bumper Trim

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT BUMPER TRIM

NOTE: Description is shown on the E82 by way of example. There may be differences in detail in the case of other models.

IMPORTANT: During replacement, all the cavities of the carrier (1) and the crashbox (2) must be sealed with cavity sealant.

Fig 1: Identifying Carrier & Crashbox

Courtesy of BMW OF NORTH AMERICA, INC.

Version with brake air duct:

Release screw (1) on cooling air guide (2) on left/right.

Remove cooling air guide (2).

NOTE:

The following work step ends here:

"Removing and installing brake air duct".

Fig 2: Identifying Screw On Cooling Air Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Depending on version:

Release screws (1) on carrier (2).

Remove shock absorbers (3) on left/right.

Release washer fluid hose (4) from carrier (2).

Fig 3: Identifying Screws On Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

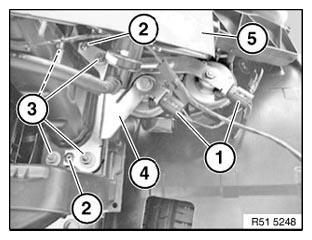

If necessary, disconnect plug connections (1) on fanfare horn.

Release blind rivets (2) on left/right.

Release nuts (3) on left/right.

Tightening torque, see 51 11 2AZ in 51 11 FRONT BUMPER .

If necessary, remove fanfare horn holder (4).

Remove carrier (5).

Installation:

Blind rivets (2) are only required for fitting in the factory and do not have to be refitted.

Fig 4: Identifying Plug Connections, Blind Rivets & Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
