Special Tools Required

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

00 9 317 TRIM PANEL WEDGE

Necessary preliminary tasks:

Remove COVER FOR HEADLIGHT WASHER SYSTEM

NOTE: Prior to removing, pay attention to the exact installation position with respect to the adjoining components.

Detach seal (4) in covered area of bumper trim (2).

Release screws (1) on bumper trim (2).

Lift bumper trim (2) over guide (3).

Fig 1: Identifying Screws On Bumper Trim

G05779008

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on wheel arch trim (2) on both sides.

Lift out wheel arch trim (2) at side.

Installation:

Make sure wheel arch trim (2) is in correct position.

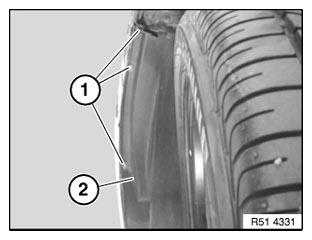

Fig 2: Identifying Screws On Wheel Arch Trim

G06176544

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Fig 3: Identifying Screws

G05779015

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not damage bumper trim when pulling off.

Slide special tool 00 9 317 between bumper trim (1) and bracket (2).

Release catches in area (3) and lever out bumper trim (1) in outward direction.

Pull bumper trim (1) forwards a little.

If necessary, disconnect plug connections on ultrasonic sensors/front fog lamps.

Remove bumper trim (1) towards front with aid of a 2nd person.

Fig 4: Sliding Special Tool 00 9 317 Between Bumper Trim & Bracket

G05779011

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (2) of bumper trim (1) must not be damaged.

If necessary, carry out height adjustment, refer to BODY GAP DIMENSIONS .

Fig 5: Identifying Catches Of Bumper Trim

G05779012

Courtesy of BMW OF NORTH AMERICA, INC.
