41 14 502 Replacing Rear Left Outer Wheel Arch Section (Rear Left Side Panel Removed)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of Body, General . Refer to 41 0 Contents Of Body, General .

Spot-weld bonding is used on this vehicle. Observe specific procedure . Refer to 41 00... Opening Adhesive Bonds and/or 41 00... Spot-Weld Bonding Steel Parts .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only approved spot-welding apparatus for repairs! Refer to 41 00... Workshop Equipment .

Necessary preliminary tasks:

Remove inner B-pillar reinforcement . Refer to 41 21 920 Replacing Left Inner B-Pillar Reinforcement (Side Panel Removed) .

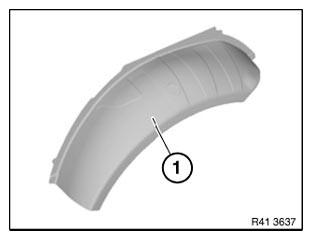

Following new body parts are required:

(1) Wheel arch, outer

Courtesy of BMW OF NORTH AMERICA, INC.

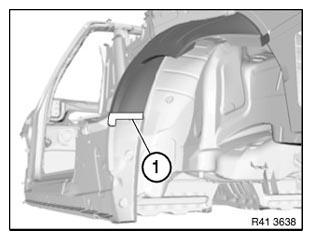

Open weld joints in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

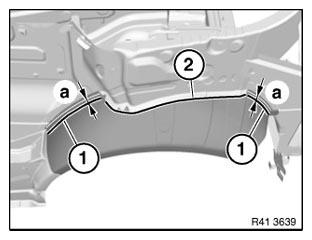

Mark severance cut (1) at gap a to radius and cut.

Measurement a = approx. 15 mm.

Mark severance cut (2) as pictured and cut.

Remove outer section of wheel arch.

Courtesy of BMW OF NORTH AMERICA, INC.

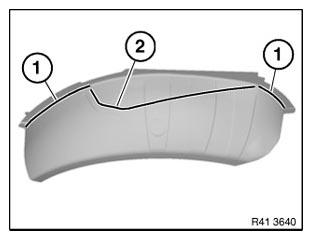

Preparation of new part:

Mark severance cuts (1) in radius and cut.

Mark severance cut (2) according to vehicle + 15 mm additional material and cut.

Installation:

Attach new component from below and weld.
Adjust new part in conjunction with side panel to fit.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

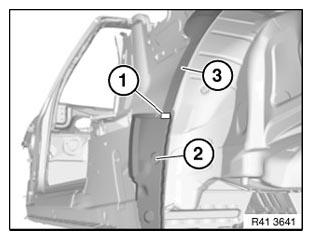

Adjust new part to fit in area (1) between wheel arch closing plate (2) and flange (3).

Courtesy of BMW OF NORTH AMERICA, INC.
