41 21 920 Replacing Left Inner B-Pillar Reinforcement (Side Panel Removed)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of Body, General . Refer to 41 0 Contents Of Body, General .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Spot-weld bonding is used on this vehicle. Observe specific procedure . Refer to 41 00... Spot-Weld Bonding Steel Parts .

Use only approved spot-welding apparatus for repairs! Refer to 41 00... Workshop Equipment .

Place vehicle on straightening bench.

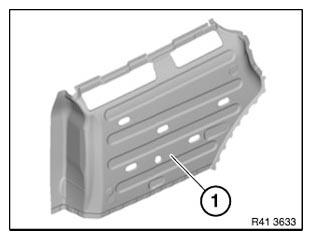

Following new body parts are required:

(1) Reinforcement, B-pillar, inner

Courtesy of BMW OF NORTH AMERICA, INC.

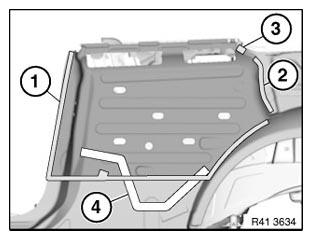

Open weld joints in area (1).

Open spot-weld bonded joints in area (2). Refer to 41 00... Opening Adhesive Bonds .

Remove B-pillar reinforcement.

Installation:

Apply window glass adhesive to cavity acoustic baffle in area (3). Refer to 41 00... Installing A Cavity Acoustic Baffle (Expanded) .

Warning - fire hazard!

Apply window glass adhesive to cavity acoustic baffle in area (4) only after welding new component.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust new part in conjunction with side panel to fit.
