41 21 510 Replacing Front Left Door Pillar (Front Side Panel Removed)

Read contents of Body, General  . Refer to 41 0 Contents Of Body, General

Spot-weld bonding is used on the E87. Observe specific procedure  . Refer to 41 00... Opening Adhesive Bonds  and/or 41 00... Spot-Weld Bonding Steel Parts .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only approved spot-welding apparatus  for repairs! Refer to 41 00... Workshop Equipment .

Place vehicle on straightening bench.

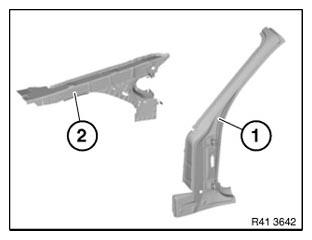

Following new body parts are required:

• (1) A-pillar, outer
• (2) Support carrier, wheel arch, outer
• (3) Shaped part, support carrier, wheel arch (not shown)

  Courtesy of BMW OF NORTH AMERICA, INC.

  Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified measurements and cut.

Measurement a = approx. 130 mm from edge of rectangular hole.

Measurement b = approx. 200 mm from centerpoint of 12 mm dia. bore.

Open weld joints in areas (1).

Installation:

Weld in reinforcing panels  at all severance cuts. Refer to 41 00... Welding In Reinforcement Plate (Steel Plate) .

Apply window glass adhesive to cavity acoustic baffles  (2). Refer to 41 00... Installing A Cavity Acoustic Baffle (Expanded)  and/or 41 00... Installing A Cavity Acoustic Baffle (Not Expanded) .

Installation:

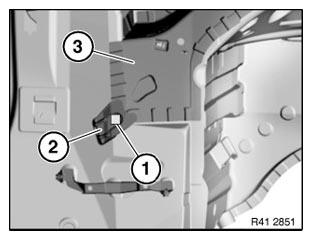

Right side of vehicle only:

Drill through bracket (2) and support carrier (3) in area (1) and MAG weld.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

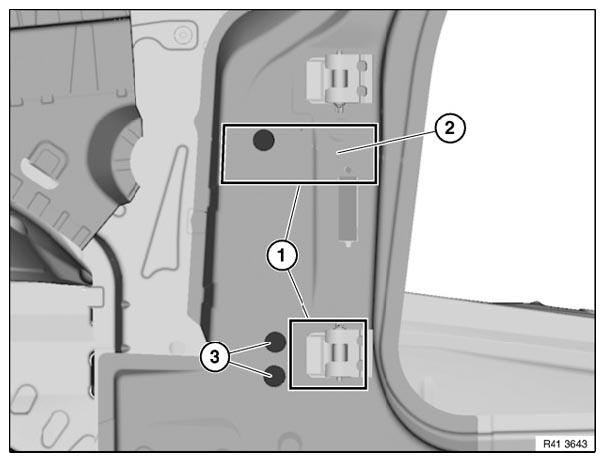

Roughly mark severance cuts (1) and cut.

Remove metal section (2).

Installation:

Weld new part through bores (3) from outside.

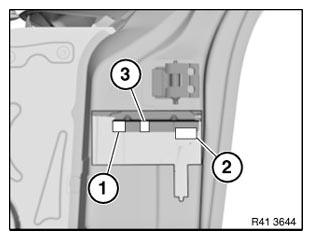

Open weld joints in areas (1) and (2).

Installation:

Welding spot in area (1) is omitted and replaced by plug welding in area (3).

Distance approx. 25 mm.

Prepare vehicle in area (3) for plug welding from passenger compartment.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

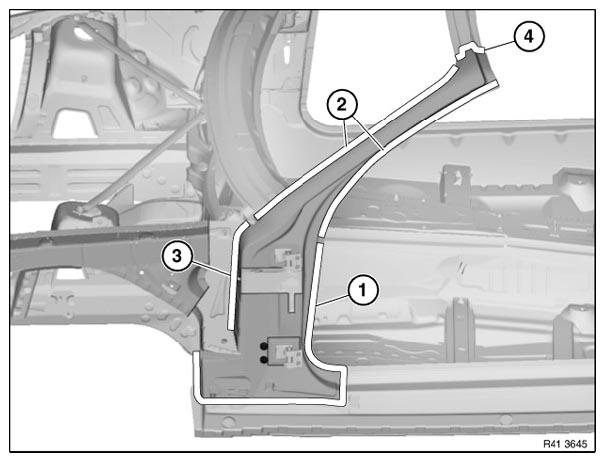

Open weld joints in area (1).

Open weld joints for both outer plates in areas (2).

Open spot-weld bonded joints in area (3)

Open brazed joint in area (4).

Remove A-pillar.

Open spot-weld bonded joints in area (2)

Installation:

Plug-weld new part in area (2) from outside.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust new part to fit with straightening attachment or universal mount.

Apply adhesive  in area (1). Refer to 41 00... Bonding Steel On Steel .
