65 90 540 Removing and installing/replacing aerial of Global Positioning System (GPS)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Move convertible top into position shown.

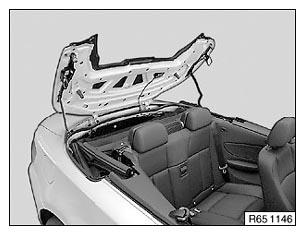

Fig 1: Moving Convertible Top Into Position

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Remove aerial (2) and disconnect plug connection (3).

Installation:

Make sure lead (4) is correctly seated.

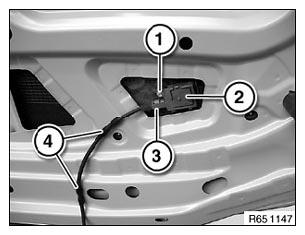

Fig 2: Identifying Plug Connection And Aerial

Courtesy of BMW OF NORTH AMERICA, INC.
