36 11 523 Removing and installing/replacing an RDC trigger transmitter (rear)

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Partially detach rear WHEEL ARCH TRIM .

After installation:

Carry out RESETTING OF RDC .

Disconnect plug connection (1).

Release screws (2) and remove trigger transmitter.

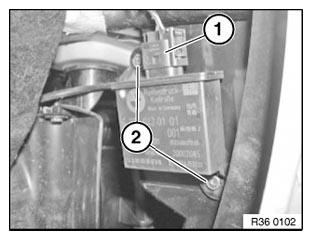

Fig 1: Identifying Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

E90 and E91 from 09/2008:

Disconnect plug connection (1).

Press holder (2) together and detach trigger transmitter (3) towards front.

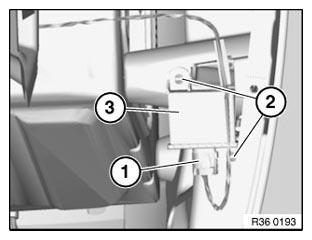

Fig 2: Identifying Holder And Trigger Transmitter

Courtesy of BMW OF NORTH AMERICA, INC.
