34 41 140 Removing and installing or replacing guide tube for handbrake cables

Special tools required:

• 32 1 030

See STEERING AND WHEEL ALIGNMENT - SPECIAL TOOLS .

Necessary preliminary tasks:

• Disconnect battery negative lead  . See 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
• Remove airbag control unit  . See 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
• Remove propeller shaft  . See 26 11 000 REMOVING AND INSTALLING PROPELLER SHAFT (INSERTED) COMPLETELY .

Lock adjuster unit (ASZE).

Actuate parking brake lever. Screw in special tool 32 1 030 partially. Press stop (1) of adjusting spring back to such an extent that retaining hook (2) engages in stop (1).

Installation:

Unlock adjuster unit (ASZE).

Lever out restraining hook (2) with a suitable screwdriver.

Restraining hook (2) must detach from stop (1) of adjusting spring.

Fig 1: Removing Restraining Hook

Courtesy of BMW OF NORTH AMERICA, INC.

Press retainer (1) in balance arm (2) forward in direction of arrow.

Detach handbrake Bowden cables (3) from balance arm (2).

Fig 2: Pressing Retainer In Balance Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Pull handbrake cables out of guide tube.

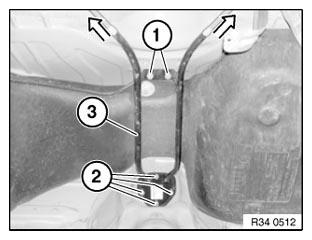

Release screws (1).

Release screws (2) and feed out guide tube (3) towards bottom.

Installation:

Replace seal.

Tightening torque 34 41 4AZ, see 34 41 PARKING BRAKE

Fig 3: Removing Guide Tube

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

• Adjusting parking brake
